Artikelnummer: 4551527

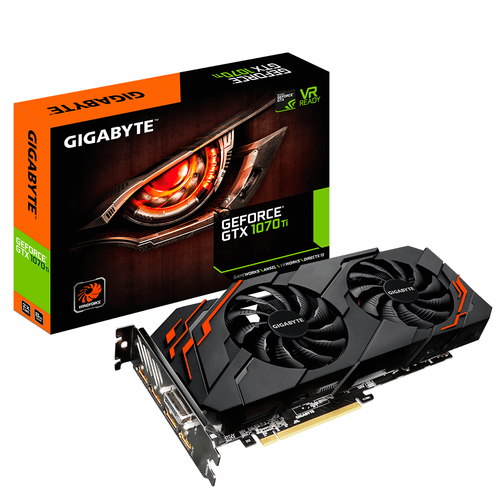

Gigabyte GeForce GTX 1070 Ti WINDFORCE 8G - Grafische kaart - GF GTX 1070 Ti - 8 GB GDDR5 - PCIe 3.0 x16 - DVI, HDMI, 3 x DisplayPort
WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 90mm fans, 2 pure copper composite heat-pipes, unique blade fan design, heat pipes direct touch technology together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
WINDFORCE Cooling System- Fans
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The 3D Active Fan provides semi-passive cooling, the fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
WINDFORCE 2X Cooling System- Heat Pipes
Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
Heat Pipes Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU for enhanced thermal transfer. The heat pipes also touch a large metal base plate covering the VRAM module via thermal pads to ensure the critical cores are properly cooled.
Performance
One-click Super overclocking
With a simple click on AORUS GRAPHICS ENGINE utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Durability
Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
Built for OverClocking with 6+2 power phases
Compared to founders edition, the 6+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.
Intuitive Utility
AORUS Graphics Engine
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
Processor
- Grafische processor familie: NVIDIA
- Grafische processor: GeForce GTX 1070 Ti
- Maximum resolutie: 7680 x 4320 Pixels
- CUDA: Ja
- Frequentie van processor: 1607 MHz
- Ondersteuning voor parallel processing: 2-Way SLI
- FireStream: Nee
- Processor boost clock speed: 1683 MHz
- Resolutie (maximum digitaal): 7680 x 4320 Pixels
- CUDA cores: 2432
Geheugen
- Grafische geheugen: 8 GB
- Grafische adapter, soort geheugen: GDDR5
- Geheugenbus: 256 Bit
- Kloksnelheid geheugen: 8008 MHz
Minimale systeemeisen
- Ondersteunt Windows: Ja
- Ondersteunt Linux: Ja

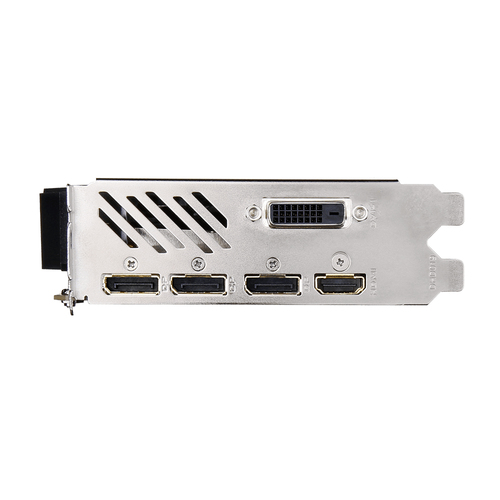

Poorten & interfaces
- Soort aansluiting: PCI Express x8 3.0
- Aantal HDMI-poorten: 1
- DVI-D poorten: 1
- Aantal DisplayPorts: 3
- HDMI versie: 2.0b
- DisplayPort versie: 1.4
Energie
- Minimum system power voorraad: 500 W
- Extra geleverde power connectors: 1x 8-pin
Design
- Type koeling: Actief
- Aantal ventilatoren: 2 ventilator(en)
- Vormfactor: ATX
- Aantal sloten: 2
- Kleur van het product: Zwart
Prestatie
- Geïntegreerde TV Tuner: Nee
- PhysX: Ja
- DirectX versie: 12.0
- Shader model versie: 5.1
- OpenGL versie: 4.5
- HDCP: Ja
- Dual Link DVI: Ja
- Klaar voor Virtual Reality (VR): Ja
- Volledige HD: Ja
- NVIDIA 3D Vision: Ja
- NVIDIA GameWorks VR: Ja
- NVIDIA G-SYNC: Ja
€ 406,87
