Artikelnummer: 4852568

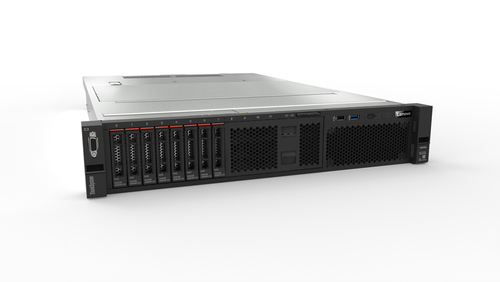

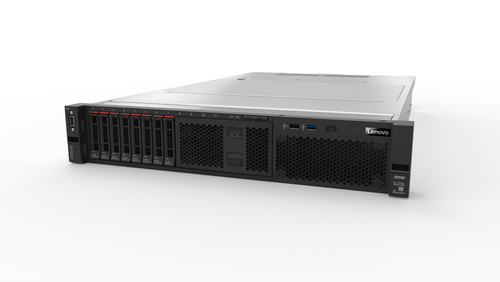

Lenovo ThinkSystem SR590 7X99 - Server - rack-uitvoering - 2U - 2-weg - 1 x Xeon Gold 6130 / 2.1 GHz - RAM 32 GB - SAS - hot-swap (verwisselbaar zonder uitschakelen) 2.5" - geen HDD - Matrox G200 - GigE - geen OS - monitor: geen
- A high degree of commonality of components among all servers in the portfolio reduces costs for parts-on-hand inventory and simplifies servicing.
- Support for ASHRAE A4 (with processor limitations for a fully configured server) reduces operating expenses for cooling.
- AnyBay storage bays enable the use of SFF SAS/SATA and NVMe drives in the same bays.
Powerful and balanced
Designed for rack environments that require peak two-socket performance and sizeable memory capacity, the Lenovo ThinkSystem SR590 can tackle cloud and Big Data environments for medium and large enterprises. The SR590 is a balanced, midrange rack server that also works well for small-scale virtualization, collaboration and productivity applications, as well as caching and logging.
Two Intel® Xeon® Scalable Family processors increase agility and manage data-rich, high-demand workloads with up to a 1.5x memory bandwidth increase over the previous generation. Combined with up to 1TB of memory capacity, this enables applications to run faster and more efficiently and boosts business performance at a lower cost and higher overall value.
Flexible and expandable
The SR590 supports up to 16 hot-swap 2.5” or 14 hot-swap or simple-swap 3.5” drive bays. Up to four of the 2.5” or 3.5” bays can be AnyBay, capable of supporting not only SAS/ SATA drives, but also direct -connect NVMe drives (which bypass the SAS bus) for the ultimate in storage performance. In addition, the SR590 supports SAS and SATA HDDs and SSDs with up to 12Gb SAS throughput, as well as up to two M.2 drives for faster, more secure OS boot. The SR590 provides storage flexibility, NIC expansion in multiple form factors, including LOM, ML2, and PCIe, and replaceable I/O riser cards for varied adapter slot configurations.
Reliable and secure
Lenovo servers have been the most reliable in the industry for several years. They were ranked #1 yet again in the latest ITIC survey of x86 server reliability*. The SR590 is no exception, including many features that contribute to the reliability and security of the server and your all-important data.
These features result in an ideal server for proxy caching, cloud, CRM, security, virtualization, media streaming, Big Data, databases, database-driven Web serving, mail serving, and many other workloads.
Why Lenovo
Lenovo is the leading provider of x86 systems for the data center. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security. Lenovo also offers a full range of networking, storage, software and solutions, and comprehensive services supporting business needs throughout the IT lifecycle.
- High-performance processors and memory
- High-performance I/O and storage
- Large storage capacity
- Large I/O capacity
- High reliability, highly secure
- Cost-efficient
- Simple to manage and service
Processor
- Frequentie van processor: 2,1 GHz
- Processorfamilie: Intel® Xeon®
- Processormodel: 6130
- Aantal processorkernen: 16
- Aantal geïnstalleerde processoren: 1
- Processor cache type: L3
- Processor cache: 22 MB
- Processor socket: LGA 3647
- Maximale turbofrequentie van processor: 3,7 GHz
- Processor lithografie: 14 nm
- Processor aantal threads: 32
- Processor operating modes: 64-bit
- Bus type: UPI
- aantal QPI links: 3
- Codenaam processor: Skylake
- Tcase: 87 °C
- Maximaal intern geheugen ondersteund door processor: 768 GB
- Geheugentypen ondersteund door processor: DDR4-SDRAM
- Klokgeheugen-snelheden ondersteund door processor: 2666 MHz
- Geheugenkanalen ondersteund door processor: Hepta
- ECC ondersteund door processor: Ja
- Execute Disable Bit: Ja
- Maximaal aantal PCI Express-lijnen: 48
- Verpakkingsgrootte processor: 76 x 56.5 mm
- Ondersteunde instructie sets: AVX,AVX 2.0,AVX-512,SSE4.2
- Schaalbaarheid: S4S
- Ingebouwde opties beschikbaar: Ja
- Thermal Design Power (TDP): 125 W
- Conflictvrije processor: Ja
Geheugen
- Intern geheugen: 32 GB
- Intern geheugentype: DDR4-SDRAM
- Maximum intern geheugen: 1000 GB
- Geheugenslots: 16
- ECC: Ja
- Kloksnelheid geheugen: 2666 MHz
- Geheugenlayout: 1 x 32 GB
Beeldscherm
- Ingebouwd display: Nee
Poorten & interfaces
- VGA (D-Sub)poort(en): 1
- Aantal Ethernet LAN (RJ-45)-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 3
Gewicht en omvang
- Breedte: 482 mm
- Diepte: 763,7 mm
- Hoogte: 86,5 mm
Energie
- Redundante voeding: Ja
- Netvoeding: 750 W
- Aantal ondersteunde redundante voedingen: 2
- Aantal geïnstalleerde redundante voedingen: 1
Eisen aan de omgeving
- Luchtvochtigheid bij opslag: -40 - 70 procent
- Hoogte, in bedrijf: 0 - 3048 m
Netwerk
- Ethernet LAN: Ja
- Wi-Fi: Nee
- Bluetooth: Nee
- Ethernet interface type: Gigabit Ethernet
Opslagmedia
- RAID support: Ja
- Soorten RAID: 0, 1, 5, 6, 10, 50, JBOD
- Ondersteunde RAID-controllers: 930-8i 2GB Flash
- Maximum aantal HDD's per behuizing: 8
- Supported HDD sizes: 2.5"
- Hot-swap: Ja
- Ondersteunde opslagstationinterfaces: SAS, SATA III
- Geïntegreerde geheugenkaartlezer: Nee
Certificaten
- Energy Star-certificaat: Ja
Software
- Compatibele besturingssystemen: Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 7.3/6.9. SUSE \nLinux Enterprise Server 12 SP2/11 SP4. VMware ESXi 6.5/6.0 U3
Uitbreidingsmodules
- PCI Express x8 slots: 4
- PCI Express slots versie: 3.0
Design
- Type behuizing: Rack (2U)
- Soort optische drive: Nee
Grafisch
- Ingebouwde grafische adapter: Ja
- On-board graphics adapter model: Matrox G200
Processor speciale functies
- Enhanced Intel SpeedStep Technology: Ja
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Hyper Threading Technology (Intel® HT Technology): Nee
- Intel® Turbo Boost Technology: 2.0
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted Execution Technology: Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Intel® TSX-NI: Ja
- Intel® 64: Ja
- Intel® Virtualization Technology (VT-x): Ja
- ARK ID processor: 120492
Prestatie
- Prestatiebeheer: XClarity Standard
- Trusted Platform Module (TPM): Ja
€ 5.246,39
