Artikelnummer: 5033827

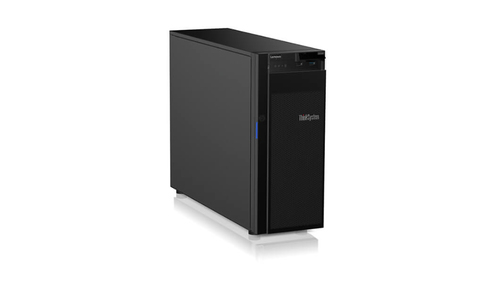

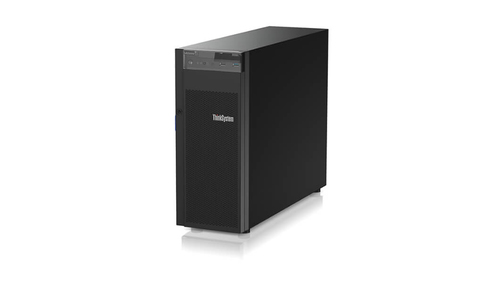

Lenovo ThinkSystem ST250 7Y45 - Server - towermodel - 4U - 1-wegs - 1 x Xeon E-2176G / 3.7 GHz - RAM 16 GB - SAS - hot-swap (verwisselbaar zonder uitschakelen) 2.5" - geen HDD - DVD-brander - Matrox G200 - GigE - geen OS - monitor: geen
Enterprise capacity
The Lenovo ThinkSystem ST250 is a fully-featured, single-socket, easily-managed rackable tower server for the small-to-medium-sized business (SMB) or remote office/ branch office (ROBO) environment.
The ST250 harnesses enterprise-level server power with the next-generation Intel® Xeon® E-2100 processors in tandem with a wide range of storage options and seamless integration with Lenovo’s XClarity management system.
From web serving, system management, and near-side data backup, the ST250 supports several workloads. Intel SGX provides security for blockchain applications.
Enterprise flexibility and manageability

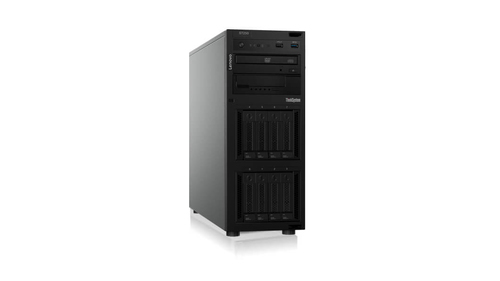

The ThinkSystem ST250 features a highly flexible design that deploys server performance where it's needed and adapts as requirements change over time. Expand storage configurations with up to 16x 2.5-inch hot-swappable HDDs/SSDs and an internal M.2 module, while protecting data with various RAID options.
Increase performance and connectivity with GPU support, multiple PCIe slots, and lightning-quick TruDDR4 memory. Lenovo XClarity software provides easy-to-use systems management and dramatically reduces provisioning time, while an array of XClarity integrators allow utilization of XClarity through external IT applications to streamline IT management and contain costs.
Designed for ROBO use
The ThinkSystem ST250 is engineered for the remote office / branch office environment. A compact footprint and office-quiet cooling system satisfy on-premises use.
Power supply redundancy options with dual-redundant AC power at 550W result in critical asset dependability. These components increase server uptime, workplace productivity, and asset security; the ideal solution for an environment without a dedicated on-site IT support system.
Processor
- Frequentie van processor: 3,7 GHz
- Processorfamilie: Intel® Xeon®
- Processormodel: E-2176G
- Aantal processorkernen: 6
- Aantal geïnstalleerde processoren: 1
- Processor cache type: Smart Cache
- Processor cache: 12 MB
- Systeembus: 8 GT/s
- Processor socket: LGA 1151 (Socket H4)
- Maximale turbofrequentie van processor: 4,7 GHz
- Processor lithografie: 14 nm
- Processor aantal threads: 12
- Processor operating modes: 64-bit
- Stepping: U0
- Bus type: DMI3
- Codenaam processor: Coffee Lake
- Maximaal intern geheugen ondersteund door processor: 128 GB
- Geheugentypen ondersteund door processor: DDR4-SDRAM
- Klokgeheugen-snelheden ondersteund door processor: 2666 MHz
- Geheugenbandbreedte ondersteund door de processor ( max): 41,6 GB/s
- Geheugenkanalen ondersteund door processor: Dual
- ECC ondersteund door processor: Ja
- Execute Disable Bit: Ja
- Idle States: Ja
- Thermal Monitoring Technologies: Ja
- Maximaal aantal PCI Express-lijnen: 16
- PCI Express configuraties: 1x16,2x8,1x8+2x4
- Verpakkingsgrootte processor: 37.5 x 37.5 mm
- Ondersteunde instructie sets: AVX 2.0,SSE4.1,SSE4.2
- Processorcode: SR3WS
- Schaalbaarheid: 1S
- Ingebouwde opties beschikbaar: Ja
- Thermal Design Power (TDP): 80 W
Geheugen
- Intern geheugen: 16 GB
- Intern geheugentype: DDR4-SDRAM
- Maximum intern geheugen: 64 GB
- Geheugenslots: 4
- Kloksnelheid geheugen: 2666 MHz
- Geheugenlayout: 1 x 16 GB

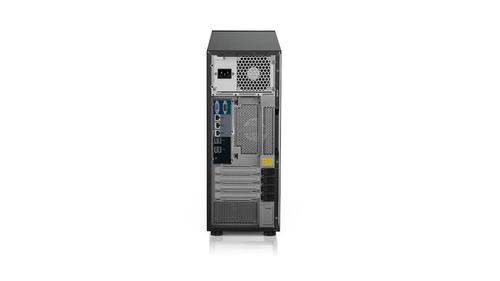

Poorten & interfaces
- Aantal USB 2.0-poorten: 1
- VGA (D-Sub)poort(en): 1
- Aantal Ethernet LAN (RJ-45)-poorten: 3
- Seriële poort(en): 1
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 3
- Aantal poorten USB 3.1 (3.1 Gen 2) Type A: 2
- FireWire 800: Nee
- Dual Link DVI: Nee
- S/PDIF-in poort: Nee
- S/PDIF-uitgang: Nee
Gewicht en omvang
- Breedte: 175 mm
- Diepte: 565,7 mm
- Hoogte: 430 mm
Energie
- Netvoeding: 550 W
Netwerk
- Ethernet LAN: Ja
- Bekabelingstechnologie: 10/100/1000Base-T(X)
- Ethernet interface type: Gigabit Ethernet
Opslagmedia
- Maximum aantal HDD's per behuizing: 16
- Supported HDD sizes: 2.5,3.5,5.25,M.2
- Hot-swap: Ja
- Aantal ondersteunde SSD's: 1
Certificaten
- Energy Star-certificaat: Ja
Software
- Inclusief besturingssysteem: Nee
- Compatibele besturingssystemen: - Microsoft, SUSE, Red Hat, VMware vSphere\n- Microsoft Windows Client OS – Win10
Uitbreidingsmodules
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x4 (Gen 3.x) slots: 1
- PCI Express x8 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express slots versie: 3.0
Overige specificaties
- RAID-ondersteuning: 530-8i
Design
- Type behuizing: Tower (4U)
- Soort optische drive: DVD±RW
- Kleur van het product: Zwart
- Rack-montage: Ja
Grafisch
- Familie ingebouwde grafische adapter: Intel® UHD Graphics
- On-board graphics adapter model: Intel UHD Graphics P630
- Basisfrequentie ingebouwde grafische adapter: 350 MHz
- Graphics on-board -adapter dynamische frequentie (max): 1200 MHz
- Maximaal geheugen ingebouwde grafische adapter: 64 GB
- On-board grafische adapter OpenGL versie: 4.5
- On-board grafische adapter DirectX-versie: 12.0
- Aantal displays ondersteund (door on-board grafische adapter): 3
- On-board grafische adapter ID: 0x3E96
Processor speciale functies
- CPU configuratie (max): 1
- Enhanced Intel SpeedStep Technology: Ja
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Hyper Threading Technology (Intel® HT Technology): Ja
- Intel® Turbo Boost Technology: 2.0
- Intel® Quick Sync Video Technology: Ja
- Intel® InTru™ 3D Technology: Ja
- Intel® Clear Video HD Technology (Intel® CVT HD): Ja
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted Execution Technology: Ja
- Intel® Enhanced Halt State: Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Intel® Secure Key: Ja
- Intel® TSX-NI: Ja
- Intel® OS Guard: Ja
- Intel® Clear Video-technologie: Ja
- Intel® Software Guard Extensions (Intel® SGX): Ja
- Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID): Ja
- Intel® 64: Ja
- Intel® Virtualization Technology (VT-x): Ja
- ARK ID processor: 134860
Prestatie
- Beheerplatform: XClarity Standard
- Trusted Platform Module (TPM): Ja
- Trusted Platform Module (TPM) version: 2.0
€ 1.442,27
