Artikelnummer: 4753939

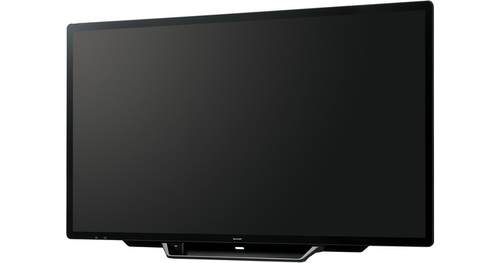

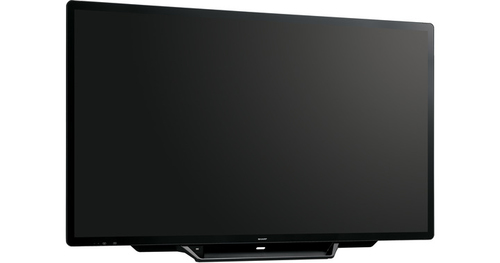

Sharp BIG PAD PN-80TH5 - 80" Klasse led-scherm - interactieve communicatie - met aanraakscherm - 4K UHD (2160p) 3840 x 2160 - volledige array - zwart
Sharp's BIG PAD PN-80TH5 is the ultimate premium 4K interactive display for corporate office meetings, architectural construction, engineering design, medical review and demanding mission-critical collaborative working environments. Building on Sharp's unique pioneering IWB legacy, the BIG PAD PN-80TH5 represents Sharp's latest innovative insight and unparalleled experience in providing outstanding collaborative touchscreen solutions.
Offering state-of-the-art collaboration with the outstandingly smooth projected capacitive (P-CAP) touch technology, Sharp’s new flagship series of 4K BIG PAD interactive displays is once again re-inventing collaborative teamwork.
Sharp’s premium 80” 4K BIG PAD has the "Pen-On-Paper" user experience at the heart of its design. The incredibly fast, responsive and sensitive projected-capacitive 30-point multi-touch has been optimised for best touch performance in demanding applications, such as boardroom meetings, lecture theatres, specialised professional review and mission-critical war-room environments. Enhanced team communication and the capturing of all creative expression means that the best conditions for decisive and productive collaboration are achieved.
The acclaimed, smart and intuitive SHARP Pen Software works with the bundled active stylus (2mm tip) to open up new ways for brainstorming, sharing ideas and finalising decisions. Powerful, flexible and technologically innovative, Sharp’s BIG PAD PN-80TH5 provides an outstanding collaboration platform to encourage creativity, boost meeting productivity and enhance effective decision making. The powerful Windows driver, Pen Digitizer, ensures automatic, intuitive and intelligent switching between Pen annotation and Finger control. It’s so good, you won’t even notice the switch! Finally, the PN-80TH5 offers flexible and powerful application enhancement opportunities via the Mini OPS slot extension.
Using one BIG PAD is good. Using two or three BIG PAD PN-80TH5's in the powerful Multi-Board configuration is even better! BIG PAD can be linked together to operate as a single collaboration surface. SHARP Touch Viewer Software also offers an easy-to-use interface and file system to collect and organise data from different collaborative projects.
- BIG PAD for specialised professional, education and mission-critical applications
- 80" (204,4cm) size with 3840 x 2160 pixels
- "Pen-On-Paper" User Experience with Highly Responsive P-CAP 30-Point Touch
- True 4K Reading and Writing User Experience with integrated Palm Reject
- Brilliant Eye-Catching Image Content with direct optical bonding
- Intuitive Writing, Drawing and Annotation with Sharp Pen Software
- Latest BYOD wireless Collaboration via Mini-OPS Slot or Sharp Display Connect
- Powerful data organisation and collaboration with Sharp Touch Viewer Application
Beeldscherm
- Beeldschermdiagonaal: 2,03 m (80")
- Responstijd: 6 ms
- Helderheid: 300 cd/m²
- Display technologie: UV2A
- Typische contrastverhouding: 4000:1
- Touchscreen technologie: Projected capacitive-systeem
- Resolutie: 3840 x 2160 Pixels
- Beeldscherm type: LCD
- Pixel pitch: 0,464 x 0,464 mm
- Kijkhoek, horizontaal: 176°
- Kijkhoek, verticaal: 176°
- Beeldverhouding: 16:9
- Effectieve beelddiameter: 1008,2 x 1781,8 mm
- Backlight type: LED
- Schermdiameter in centimeters: 204,4 cm
- Beeldscherm, aantal kleuren: 1.06 billion colours
Poorten & interfaces
- Aantal USB 2.0-poorten: 2
- Aantal HDMI-poorten: 3
- VGA (D-Sub)poort(en): 1
- Aantal DisplayPorts: 3
- Meegeleverde kabels: AC,RS-232,USB
- RS-232 port: 1
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- Hoofdtelefoonuitgangen: 1
- RS-232C: Ja
Gewicht en omvang
- Breedte: 1863 mm
- Hoogte: 1090 mm
- Diepte: 98 mm
- Gewicht: 73 kg
Energie
- Soort voeding: AC
- Vermogensverbruik (max): 325 W
- AC invoer voltage: 100 - 240 V
- AC invoer frequentie: 50/60 Hz
- Energiebeheer: Ja
Eisen aan de omgeving
- Temperatuur, in bedrijf: 5 - 35 °C
- Relatieve luchtvochtigheid, in bedrijf: 20 - 80 procent
Netwerk
- Ethernet LAN: Ja
Certificaten
- RoHS compliance: Ja
Ergonomie
- Ophangsysteem voor aan de muur: Ja
- Paneelmontage-interface: 400 x 400 mm
- Ondersteuning voor plaatsing: Horizontaal/Verticaal
- VESA-montage: Ja
Inhoud van de verpakking
- Afstandsbediening: Ja
- Batterijen meegeleverd: Ja
- Type accu/batterij: AAA
- Ondersteund aantal accu's/batterijen: 2
- Snelstartgids: Ja
Design
- Kleur van het product: Zwart
- Glas dikheid: 1,9 mm
Prestatie
- Touch technologie: Multi-touch
- Touch screen type: Multi-gebruiker
- Ingebouwde camera: Nee
- Ingebouwde microfoon: Nee
- OmniTapps Multitouch compatibiliteit: Nee
- Ingebouwde luidsprekers: Ja
- Gemiddeld vermogen: 20 W
- HDCP: Ja
- Hoeveelheid simultane aanraakpunten: 30
- Ondersteunt Windows: Windows 10,Windows 7,Windows 8
- Ondersteunt Mac-besturingssysteem: Ja
- Plug and play: Ja
€ 17.131,58
