Artikelnummer: 4876598
NEC OPS Slot-in PC - Digital signage player - Intel Celeron - RAM 4 GB -flash 32 GB - Windows 10 IOT LTSB 64-bit
Supporting static and dynamic content even up to UHD playback, powerful performance for signage content is perfectly balanced with cost-efficiency. The OPS concept is the first industry-wide digital signage standard, simplifying device installation, usage and maintenance, whilst providing a fully embedded yet upgradeable solution. Delivering performance and value for many different digital signage applications, this embedded PC solution is used to power Flight Information in Airports, Media Players for Retail Signage, Menu Board play-out systems for QSR, information displays in museums and enterprises and much more.
- Performance plus value - The new Intel® Celeron Dual Core Processor (“Apollo Lake”) delivers reliable performance with up to 2.4 GHz in turbo clock speed
- Ultra High Definition playback - Intel® HD500 graphics provides 4K/60Hz resolution with remarkable video
- performance thanks to built-in HW decoding of H.265 (HEVC), H264, VP8, SVC und MVC
- High usage flexibility - thanks to wide connectivity such as 3 x USB, Gigabit Ethernet, Audio and optional WiFi and
- mobile web (4G/LTE)
- Green and economical - super low power consumption saves your wallet and the environment
- Fan-less design - ensuring silent operation and increased durability plus reliability even for 24/7 operation
- Simply plug into the future - Compatibility with open OPS Standard for Option Slot Products ensures long life cycles
- and safe investments

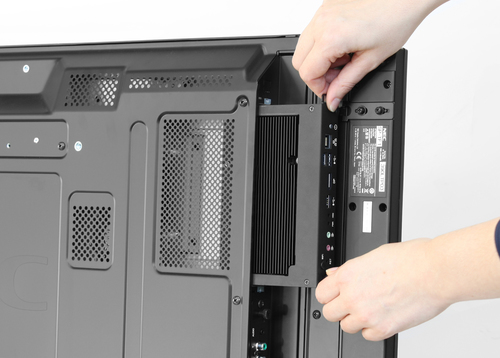

- Seamless and fully embedded - - since all connectors are inside the display including power, video & audio signals and RS232, no external cables are required
- A commitment to quality - tailored warranties available to best match long-term demands by extending standard
- warranty up to 5 years
Processor
- Processorfamilie: Intel® Celeron®
- Processormodel: N3350
Geheugen
- Intern geheugen: 4 GB
- Intern geheugentype: DDR3L-SDRAM
- Kloksnelheid geheugen: 1866 MHz
Poorten & interfaces
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 1
- Aantal HDMI-poorten: 1
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- Aantal USB 2.0-poorten: 2
- HDMI versie: 1.4
- Aantal DisplayPorts: 1
Gewicht en omvang
- Breedte: 120 mm
- Diepte: 190 mm
- Hoogte: 30 mm
- Gewicht: 800 g
- Gewicht verpakking: 900 g
Energie
- Typisch stroomverbruik: 11 W
- Stroomverbruik (in standby): 3 W
Eisen aan de omgeving
- Temperatuur, in bedrijf: 5 - 35 °C
Netwerk
- Wi-Fi: Nee
- Bekabelingstechnologie: 10/100/1000Base-T(X)
- Ethernet LAN, data-overdrachtsnelheden: 10,100,1000 Mbit/s
Opslagmedia
- Totale opslagcapaciteit: 32 GB
- Opslagmedia: eMMC
- Geïntegreerde geheugenkaartlezer: Nee
Software
- Inclusief besturingssysteem: Windows 10 IoT
- Architectuur besturingssysteem: 64-bit
Grafisch
- Ingebouwde grafische adapter: Ja
- Aparte grafische adapter: Nee
Prestatie
- Aantal antenneaansluitingen: 2
€ 656,47
