Artikelnummer: 3980993

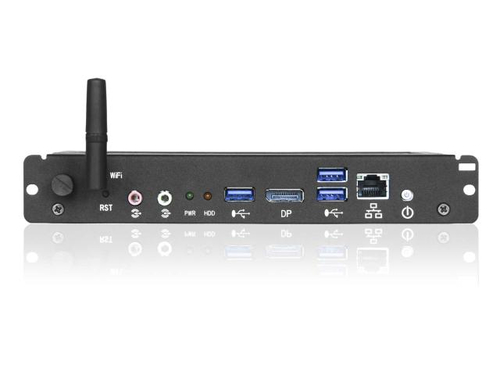

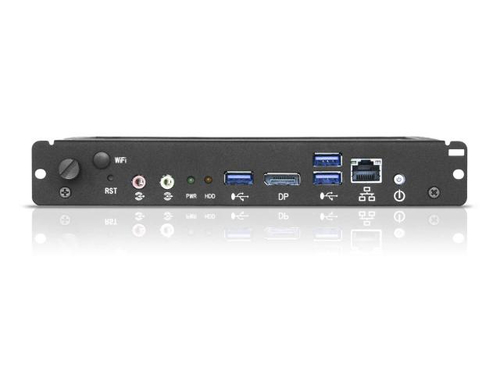

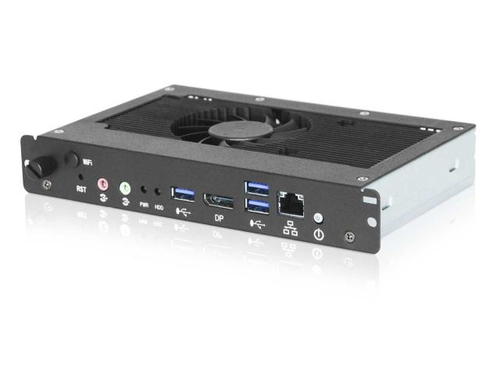

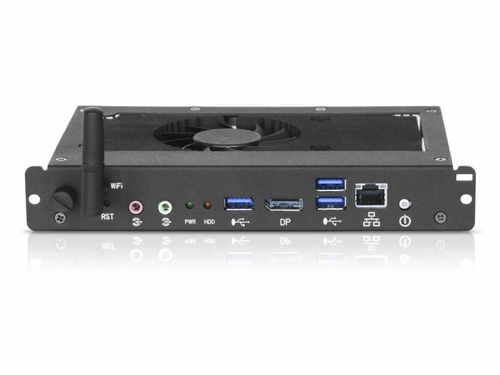

NEC OPS - Digital signage player - Intel Core i3 - RAM 4 GB -flash 64 GB - vaste schijf 64 GB - Windows 7 Embedded - zwart
OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot
- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Industrial grade components - secure high reliability whilst withstanding extreme operating conditions.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- High usage flexibility - thanks to wide connectivity such as 3 x USB, DisplayPort out, Gigabit ethernet and audio.
- Upgrade the power of your displays at any time - savings are possible by upgrading only your OPS device or your display with no need to change all hardware.
- A commitment to quality - tailored warranties available to best match long-term demands by extending standard warranty up to 5 years.
- Economical - enjoy more performance whilst consuming less power.
Processor
- Frequentie van processor: 2,7 GHz
- Processorfamilie: Zesde generatie Intel® Core™ i3
- Processormodel: i3-6100E
- Aantal processorkernen: 2
- Processor socket: BGA 1440
- Processor cache: 3 MB
- Processor cache type: Smart Cache
- Systeembus: 8 GT/s
- Processor aantal threads: 4
- PCI Express slots versie: 3.0
- Processor lithografie: 14 nm
- Processor operating modes: 64-bit
- Stepping: R0
- Bus type: DMI3
- Codenaam processor: Skylake
- Thermal Design Power (TDP): 35 W
- Processorserie: Intel Core i3-6100 series
- Maximaal aantal PCI Express-lijnen: 16
- PCI Express configuraties: 1x16,1x8+2x4,2x8
- Tjunction: 100 °C
- Maximaal intern geheugen ondersteund door processor: 64 GB
- Conflictvrije processor: Ja
- Geheugentypen ondersteund door processor: DDR3L-SDRAM,DDR4-SDRAM,LPDDR3-SDRAM
- Klokgeheugen-snelheden ondersteund door processor: 1600,1866,2133 MHz
- Geheugenbandbreedte ondersteund door de processor ( max): 34,1 GB/s
- Geheugenkanalen ondersteund door processor: Dual
- ECC ondersteund door processor: Ja
Geheugen
- Intern geheugen: 4 GB
- Intern geheugentype: DDR4-SDRAM
- Maximum intern geheugen: 16 GB
- Geheugenslots: 2x SO-DIMM
- Kloksnelheid geheugen: 2133 MHz
Poorten & interfaces
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 3
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- DVI-poort: Nee
- Aantal DisplayPorts: 1
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
- RS‐232/422-poort: Ja
Gewicht en omvang
- Breedte: 120 mm
- Diepte: 200 mm
- Hoogte: 30 mm
- Gewicht: 900 g
- Breedte verpakking: 190 mm
- Diepte verpakking: 260 mm
- Hoogte verpakking: 70 mm
- Gewicht verpakking: 1 kg
Energie
- Typisch stroomverbruik: 35 W
Eisen aan de omgeving
- Temperatuur, in bedrijf: 0 - 40 °C
- Relatieve luchtvochtigheid, in bedrijf: 0 - 90 procent
Netwerk
- Wi-Fi: Nee
- Bekabelingstechnologie: 10/100/1000Base-T(X)
- Ethernet LAN, data-overdrachtsnelheden: 10,100,1000 Mbit/s
Opslagmedia
- Totale opslagcapaciteit: 64 GB
- Opslagmedia: SSD
- Geïntegreerde geheugenkaartlezer: Ja
- Aantal storage drives geïnstalleerd: 1
- Compatibele geheugenkaarten: SD
- SSD interfaces: Micro Serial ATA III
- SSD capaciteit: 64 GB
Certificaten
- Certificering: CE / FCC class A
Grafisch
- Ingebouwde grafische adapter: Ja
- On-board graphics adapter model: Intel® HD Graphics 530
- Familie ingebouwde grafische adapter: Intel® HD Graphics
- Maximaal geheugen ingebouwde grafische adapter: 64 GB
- Basisfrequentie ingebouwde grafische adapter: 350 MHz
- Graphics on-board -adapter dynamische frequentie (max): 950 MHz
- On-board grafische adapter DirectX-versie: 12.0
- On-board grafische adapter OpenGL versie: 4.4
- On-board grafische adapter ID: 0x191B
- Discreet grafische adapter model: Niet beschikbaar
- Aantal displays ondersteund (door on-board grafische adapter): 3
Processor speciale functies
- Ondersteunde instructie sets: AVX 2.0,SSE4.1,SSE4.2
- Processorcode: SR2DV
- Intel® Identity Protection Technology (Intel® IPT): Ja
- Intel® vPro™ Technology: Nee
- Intel® Hyper Threading Technology (Intel® HT Technology): Ja
- Intel® Turbo Boost Technology: Nee
- Intel® Quick Sync Video Technology: Ja
- Intel® InTru™ 3D Technology: Ja
- Intel® Wireless Display (Intel® WiDi): Ja
- Intel® Clear Video HD Technology (Intel® CVT HD): Ja
- Intel® Insider™: Ja
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Enhanced Intel SpeedStep Technology: Ja
- Execute Disable Bit: Ja
- Idle States: Ja
- Thermal Monitoring Technologies: Ja
- Intel® Trusted Execution Technology: Nee
- Intel® Enhanced Halt State: Ja
- Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID): Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Ingebouwde opties beschikbaar: Ja
- Graphics & IMC lithografie: 14 nm
- Intel® TSX-NI: Ja
- Intel® Secure Key: Ja
- Intel® 64: Ja
- Intel® OS Guard: Ja
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Clear Video-technologie: Ja
- Intel® Software Guard Extensions (Intel® SGX): Ja
- Intel® Virtualization Technology (VT-x): Ja
- Verpakkingsgrootte processor: 42 x 28 mm
- ARK ID processor: 90611
Prestatie
- Kleur van het product: Zwart
€ 988,24
