Artikelnummer: 4235956
OPS-DRD2-A53-2/32/A5.1/W

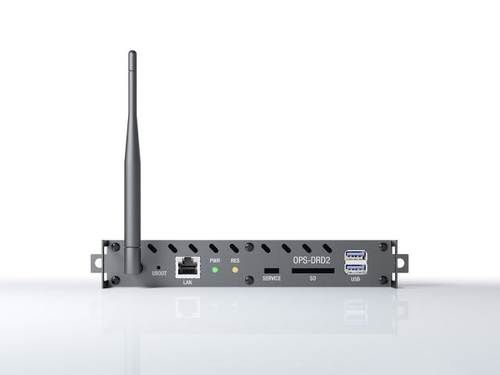

OPS Single Board Computer Cortex-A53 Quad-core CPU
Conveying fully-featured computing intelligence to all NEC Large Format Displays featuring the OPS slot and NEC PX and PH Series installation projectors to facilitate demanding digital signage and presentation.
The Single Board Computer Cortex-A53 Quad-core CPU Leading Digital Signage to the Next Level
OPS Single Board Computer Cortex-A53 Quad-core CPU is based on a Quad Core ARM processor with integrated Multi-Media Processor capable of 4K and UHD playback and ability to run third party software. It supports true 4K video playback with hardware assisted support for various video formats and was designed with display integration in mind, and can be plugged directly into any Displaying device supporting the Open Pluggable Specification (OPS). Due to the high performance level, the playback of Android based Software Applications and the wide range of connectivity options it is ideally suited for Digital Signage applications in Retail, Aviation and Transportation, Restaurants, Digital out of Home or most conventional signage uses.
Key Application: Combined with the latest technology these slot-in PCs are used as flight information controllers in airports, as media players for retail signage applications, as menu board play-out systems for QSR or as video conferencing clients in corporate applications and much more.
Delivering Genuine Benefits
- Superior performance, high efficiency - The Quad Core CPU and the integrated Mali 450 Graphics delivers stunning performance for crisp UHD and 4K playback supporting formats such as H.264 and H.265.
- High usage flexibility - Thanks to wide connectivity including 2 x USB 2.0 for connection to keyboard, mouse, flash, or touch screen, SD Card Slot, Gigabit Ethernet and W-LAN for network integration.
- Unlimited versatility - Supporting a wide range of software applications running on Android 5.1, this open platform offers high flexibility for Digital Signage Software providers and system integrators.
- Fan-less design - Ensuring silent operation and increased durability and reliability.
- Seamless and fully embedded – Simply slotted into the display for a fully integrated solution, external mounting is obsolete. An elegant, cable-free solution with internal connection for power, video, audio, data and all control interfaces.
- High reliability - The use of industrial grade components and advanced heat management makes this solution ideally suited for 24/7 operation.
- A Commitment to Quality - Tailored warranties are available to match long-term demands through extension of the standard warranty by up to 5 years.
Processor
- Frequentie van processor: 2 GHz
- Processorfamilie: Amlogic
- Processormodel: S905
- Aantal processorkernen: 4
- Aantal geïnstalleerde processoren: 1
Geheugen
- Intern geheugen: 2 GB
- Intern geheugentype: DDR3-SDRAM
- Kloksnelheid geheugen: 1333 MHz
Optische drive
- Soort optische drive: Nee
Poorten & interfaces
- Aantal USB 2.0-poorten: 5
- DVI-poort: Nee
- Aantal HDMI-poorten: 1
- Aantal Ethernet LAN (RJ-45)-poorten: 1
Gewicht en omvang
- Breedte: 200 mm
- Diepte: 119 mm
- Hoogte: 30 mm
- Gewicht: 520 g
Eisen aan de omgeving
- Temperatuur, in bedrijf: 0 - 40 °C
Netwerk
- Ethernet LAN: Ja
- Wi-Fi: Ja
- Ethernet LAN, data-overdrachtsnelheden: 10,100,1000 Mbit/s
- Bekabelingstechnologie: 10/100/1000Base-T(X)
- Wifi-standaard: IEEE 802.11n
- Wi-Fi-standaarden: IEEE 802.11b,IEEE 802.11n
Opslagmedia
- Totale opslagcapaciteit: 32 GB
- Geïntegreerde geheugenkaartlezer: Ja
- Opslagmedia: Flash
- Compatibele geheugenkaarten: SD
Verpakking
- Breedte verpakking: 280 mm
- Diepte verpakking: 194 mm
- Hoogte verpakking: 105 mm
- Gewicht verpakking: 980 g
Software
- Inclusief besturingssysteem: Android 5.1
Inhoud van de verpakking
- Inclusief monitor: Nee
Design
- Kleur van het product: Zwart, Wit
Grafisch
- Aparte grafische adapter: Nee
- Ingebouwde grafische adapter: Ja
- Discreet grafische adapter model: Niet beschikbaar
- On-board graphics adapter model: ARM Mali-450
€ 319,23
