Artikelnummer: 4287008

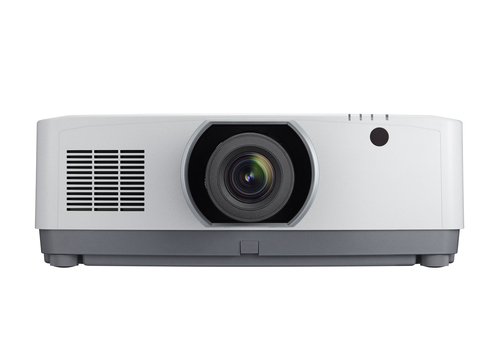

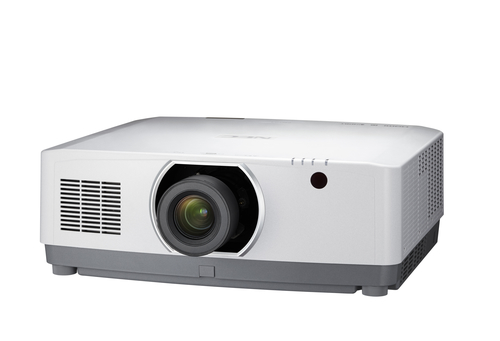

NEC PA653UL - 3LCD-projector - 3D - 6500 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - 1080p - geen lens - LAN
The NEC PA653UL Projector - combining laser, LCD and filter-free!
NEC has launched the world’s first filter-free laser projector using LCD technology.
With this unique combination, the brilliant colour brightness of LCD technology is coupled with the laser light source designed for long lasting operation. What’s more, with a completely sealed optical engine there is no filter needed at all. As result, service costs are dramatically reduced and with no dust to contaminate the LCD panels, you can enjoy consistently brilliant colour brightness. In addition, the PA series laser projector delivers incredible picture quality, impressive visualisation capabilities and powerful, cost-conscious installation opportunities.
The PA653UL projector is mainly targeting corporate and higher education users to equip their large meeting rooms, conference rooms and lecture halls.
Benefits
- No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
- Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
- Cost conscious & powerful cabling – with just CAT6 network cabling, transfer content over up to 100m using HDBaseT connectivity standard. Supply multiple projectors with one source and benefit from the unique HDBaseT-out daisy-chain interface.
- Impress with brilliant colours & contrast – astound your audience as the projector processes a wider colour space with Rec2020 to Rec709 colour conversion and higher dynamic contrast supporting HDR10 standard via HDMI interface.
- Peace of mind copyright protected content – let the projector manage copyright protection and present 4k and Ultra HD Blu-ray content via the HDMI interface.

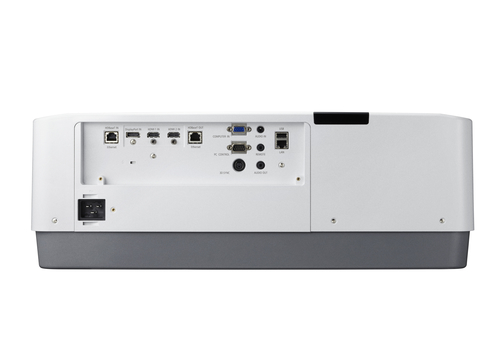

Poorten & interfaces
- VGA (D-Sub)poort(en): 2
- Aantal HDMI-poorten: 2
- Componentingang video (YPbPr/YCbCr): 1
- DVI-poort: Nee
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- Aantal USB 2.0-poorten: 1
- RS-232 port: 1
- HDMI-connector type: Volledige grootte
- HDBaseT-poort: Ja
- Hoofdtelefoonuitgangen: 1
- Aantal DisplayPorts: 1
- Soort serieële aansluiting: RS-232
- PC audio ingang: Ja
- BNC input ports: 1
- PC-ingang (D-Sub): Ja
Lenssysteem
- Horizontale lens verplaatsingsbereik: -20 - 20°
- Verticale lens verplaatsingsbereik: -50 - 10°
Gewicht en omvang
- Gewicht: 18 kg
- Breedte: 580 mm
- Diepte: 490 mm
- Hoogte: 208 mm
Energie
- Stroombron: AC
- Stroomverbruik (in standby): 0,3 W
- AC invoer voltage: 100 - 240 V
- AC invoer frequentie: 50/60 Hz
Eisen aan de omgeving
- Temperatuur, in bedrijf: 5 - 40 °C
- Temperatuur bij opslag: -10 - 50 °C
- Relatieve luchtvochtigheid, in bedrijf: 20 - 80 procent
- Luchtvochtigheid bij opslag: 20 - 80 procent
Netwerk
- Ethernet LAN: Ja
- Wi-Fi: Nee
Projector
- Projector helderheid: 6500 ANSI lumens
- Projectietechnologie: 3LCD
- Projector native resolution: WUXGA (1920x1200)
- Typische contrastverhouding: 2000:1
- Oorspronkelijke beeldverhouding: 16:10
- Projectie-afstand objectief: 0,7 - 50,9 m
- Zoomcapaciteit: Ja
- Keystone correctie, horizontaal: -40 - 40°
- Keystone correctie, verticaal: -40 - 40°
Video
- Volledige HD: Ja
- 3D: Ja
- Ondersteunde grafische resoluties: 640 x 480 (VGA),1920 x 1200 (WUXGA),2048 x 1080,2560 x 1600 (WQXGA),4096 x 2160
- Ondersteunde video-modi: 480i,480p,576i,576p,720p,1080i,1080p
Opslagmedia
- Geïntegreerde geheugenkaartlezer: Nee
Lampen
- Levensduur lamp: 20000 uur
- Soort lamp: Laserdiode
- Aantal lampen: 1 lampen
Certificaten
- RoHS compliance: Ja
- Certificering: CE; EAC; ErP; TUEV Type Approved
- HDBaseT-gecertificeerd: Ja
Inhoud van de verpakking
- Afstandsbediening: Ja
- Afstandsbediening: IR
- Meegeleverde kabels: AC
- Snelstartgids: Ja
- Gebruikershandleiding: Ja
Design
- Producttype: Desktopprojector
- Kleur van het product: Wit

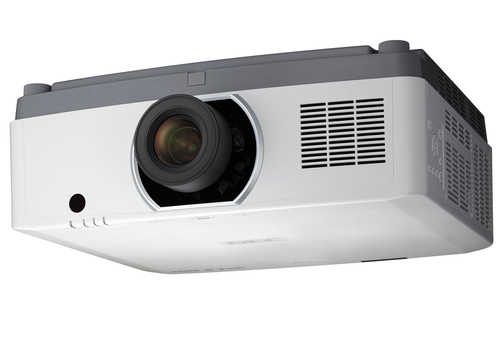

- Ondersteuning voor plafondmontage: Ja
- LED-indicatoren: Ja
Prestatie
- Geluidsniveau: 39 dB
- Geluidsniveau (spaarzame modus): 33 dB
- HDCP: Ja
- On Screen Display (OSD): Ja
- Frequentiebereik verticaal: 48 - 120 Hz
- Frequentiebereik horizontaal: 24 - 153 kHz
- Wachtwoordbeveiliging: Ja
€ 6.340,66
