Artikelnummer: 3988789

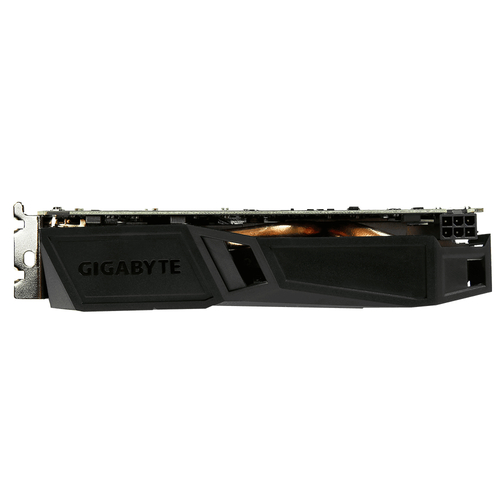

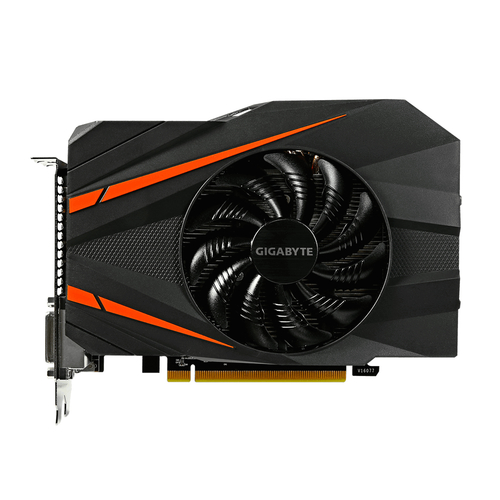

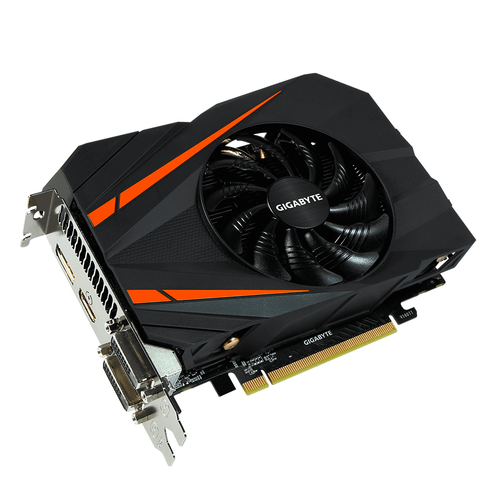

Gigabyte GeForce GTX 1060 Mini ITX OC 3G - Grafische kaart - GF GTX 1060 - 3 GB GDDR5 - PCIe 3.0 x16 - 2 x DVI, HDMI, DisplayPort
Core Clock
Boost: 1771MHz/ Base: 1556 MHz in OC Mode
Boost: 1746 MHz/ Base: 1531 MHz in Gaming Mode
Custom-designed Cooling System
Equipped with 2 pure copper heat-pipes and 90 mm unique-blade fan with 3D active functionality, and heat pipes direct touch technology, the cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed and noise.
Cooling System-Fan
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
Cooling System- Heat Pipes
Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
Compact Card Size
Measuring merely 17cm in length, the card, perfectly compatible for building most of the PCs from ATX to mini-ITX.
Performance
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Durability
Ultra Durable Graphic Components
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
Intuitive Utility
Intuitive XTREME Engine Utility
Adjust clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
- Powered by GeForce® GTX 1060
- Integrated with 3GB GDDR5 192bit memory
- 90mm cooler with 3D active fan
- One-click Super Overclocking
- 17cm Compact Card Size
Processor
- Grafische processor familie: NVIDIA
- Grafische processor: GeForce GTX 1060
- Maximum resolutie: 7680 x 4320 Pixels
- CUDA: Ja
- Frequentie van processor: 1531 MHz
- Processor boost clock speed: 1746 MHz
- Maximum displays per videocard: 4
- CUDA cores: 1152
Geheugen
- Grafische geheugen: 3 GB
- Grafische adapter, soort geheugen: GDDR5
- Geheugenbus: 192 Bit
- Kloksnelheid geheugen: 8008 MHz
Poorten & interfaces
- Soort aansluiting: PCI Express x16 3.0
- Aantal HDMI-poorten: 1
- DVI-D poorten: 2
- Aantal DisplayPorts: 1
- HDMI versie: 2.0b
- DisplayPort versie: 1.4
Design
- Type koeling: Actief
- Vormfactor: ATX
- Aantal sloten: 2
- Kleur van het product: Zwart
Prestatie
- DirectX versie: 12.0
- OpenGL versie: 4.5
- HDCP: Ja
- Dual Link DVI: Ja
- Volledige HD: Ja
- NVIDIA GameWorks VR: Ja
- NVIDIA G-SYNC: Ja
€ 199,22
