Artikelnummer: 4889789

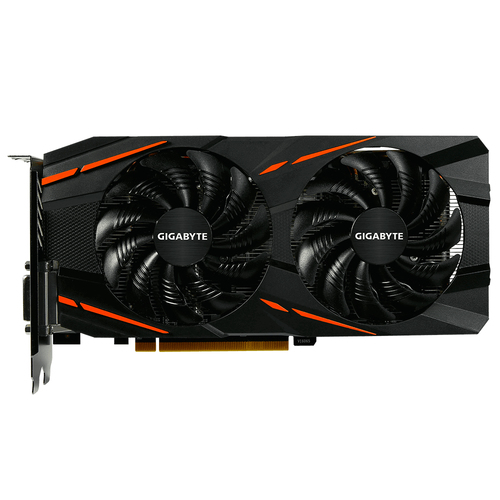

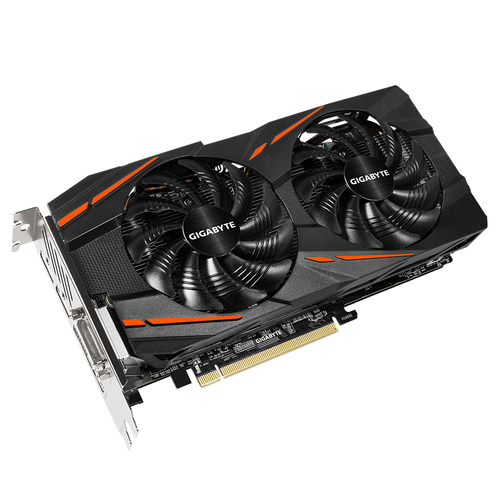

Gigabyte Radeon RX 570 Gaming 8G (rev. 1.0/1.1) - Grafische kaart - Radeon RX 570 - 8 GB GDDR5 - PCIe 3.0 x16 - DVI, HDMI, 3 x DisplayPort
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED indicators, stylish metal back plate, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
90MM UNIQUE BLADE FAN DESIGN
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow.
3D ACTIVE FAN WITH LED INDICATORS
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.

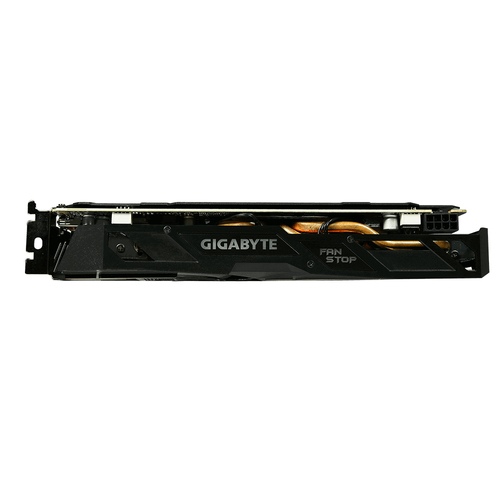

COMPOSITE HEAT-PIPES
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
3 HEAT-PIPES DIRECT TOUCH
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
GAME IN STYLE
RGB Fusion
16.7M Customizable Color Lighting
With 16.7M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics Engine.

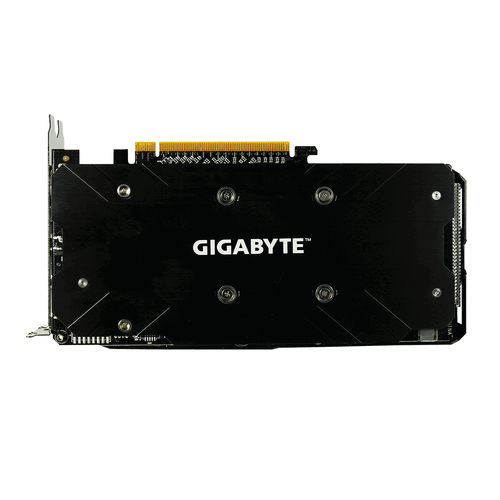

STYLISH METAL BACK PLATE
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.
BUILT FOR OVERCLOCKING WITH 6+1 POWER PHASES
6+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.
SMART POWER LED INDICATORS
Be alert when PCI-E voltage is unstable with the smart power LED indicator.
- LED ON: power cable disconnected
- LED OFF : stable power supply
- Blinking LED: abnormal power supple
AORUS Graphics Engine
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
- Powered by Radeon ™ RX 570
- WINDFORCE 2X with 90mm Blade Fan Design
- RGB fusion – 16.7M customizable color lighting
- Stylish Metal Back Plate
- Intuitive AORUS Graphics Engine
Processor
- Grafische processor familie: AMD
- Grafische processor: Radeon RX 570
- Maximum resolutie: 7680 x 4320 Pixels
- Frequentie van processor: 1244 MHz
- Processorfrequentie (OC-modus): 1255 MHz
Geheugen
- Grafische geheugen: 8 GB
- Grafische adapter, soort geheugen: GDDR5
- Geheugenbus: 256 Bit
- Kloksnelheid geheugen: 7000 MHz
Poorten & interfaces
- Soort aansluiting: PCI Express x16 3.0
- Aantal HDMI-poorten: 1
- DVI-D poorten: 1
- Aantal DisplayPorts: 3
- HDMI versie: 2.0
- DisplayPort versie: 1.4
Gewicht en omvang
- Diepte: 232 mm
- Hoogte: 40 mm
- Breedte: 116 mm
Energie
- Minimum system power voorraad: 450 W
- Extra geleverde power connectors: 1x 8-pin
Design
- Type koeling: Actief
- Aantal ventilatoren: 2 ventilator(en)
- Vormfactor: ATX
- Belichting: Ja
- Kleur van de verlichting: Multi
- Kleur van het product: Zwart
Prestatie
- DirectX versie: 12.0
- OpenGL versie: 4.5
- Dual Link DVI: Ja
- AMD FreeSync: Ja
€ 256,42
