Artikelnummer: 4139546
Gigabyte GeForce GTX 1060 WINDFORCE 6G - Grafische kaart - GF GTX 1060 - 6 GB GDDR5 - PCIe 3.0 x16 - 2 x DVI, HDMI, DisplayPort

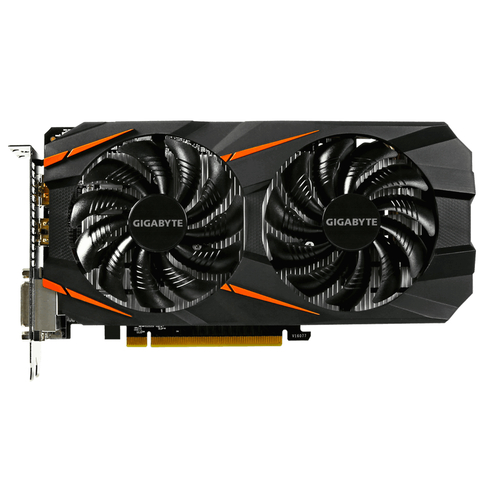

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning fan design, pure copper composite heat-pipe, heat pipe direct touch technology, semi-passive 3D active fan, and protection back plate together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.
90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

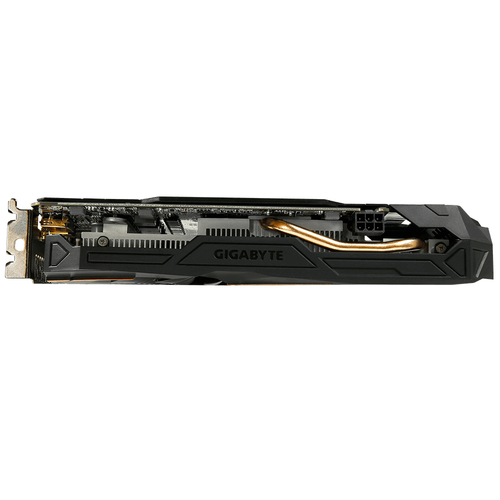

Composite heat-pipe
The composite heat-pipe combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
Heat Pipe Direct Touch
The pure copper heat pipe is shaped to maximize the direct contact area to the GPU.

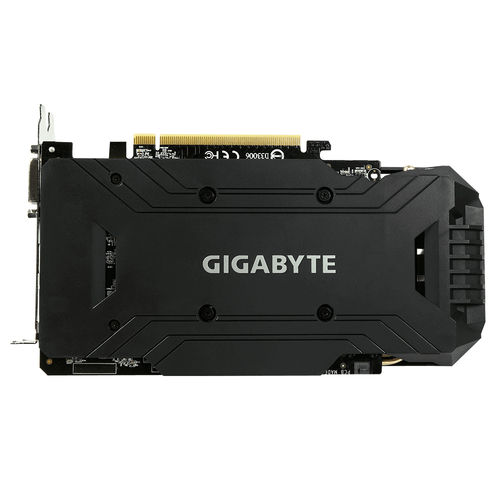

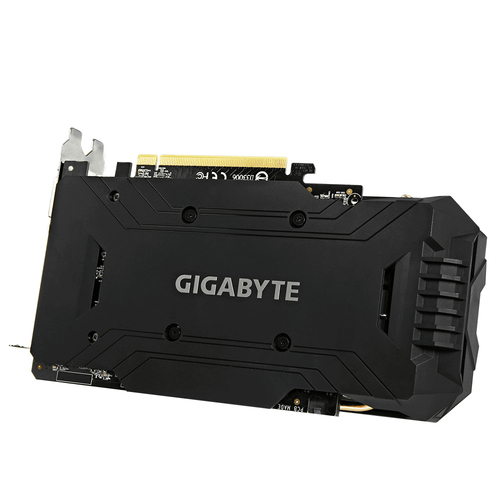

Protection back plate
Glorious black back plate provides the solid protection, strengthens the structure and inspires the passion for gaming.
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Ultra Durable Components
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
Built for OverClocking with 4+1 power phases
Compared to founders edition, the 4+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. (*founders edition:3+1)
Intuitive XTREME Engine Utility
Clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
Processor
- Grafische processor familie: NVIDIA
- Grafische processor: GeForce GTX 1060
- Maximum resolutie: 7680 x 4320 Pixels
- Frequentie van processor: 1506 MHz
- Processor boost clock speed: 1708 MHz
- Resolutie (maximum digitaal): 7680 x 4320 Pixels
Geheugen
- Grafische geheugen: 6 GB
- Grafische adapter, soort geheugen: GDDR5
- Geheugenbus: 192 Bit
- Overdrachtssnelheid: 8 Gbit/s
- Geheugen bandbreedte (max): 192 GB/s
Poorten & interfaces
- Soort aansluiting: PCI Express x16 3.0
- Aantal HDMI-poorten: 1
- DVI-D poorten: 2
- Aantal DisplayPorts: 1
- HDMI versie: 2.0b
Gewicht en omvang
- Diepte: 223 mm
- Hoogte: 39 mm
- Breedte: 121 mm
Energie
- Minimum system power voorraad: 400 W
- Typisch stroomverbruik: 120 W
- Extra geleverde power connectors: 1x 6-pin
Design
- Type koeling: Actief
- Vormfactor: ATX
- Aantal sloten: 2
- Kleur van het product: Zwart
Prestatie
- DirectX versie: 12.0
- OpenGL versie: 4.5
- HDCP: Ja
- Dual Link DVI: Ja
- NVIDIA G-SYNC: Ja
€ 262,13
