Artikelnummer: 4165459

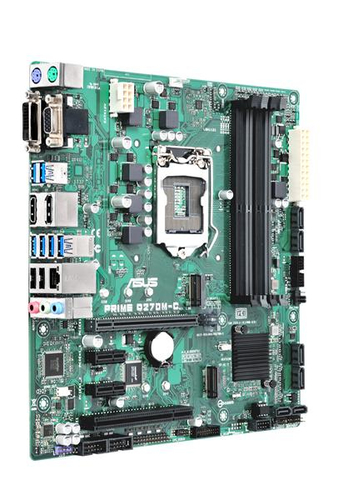

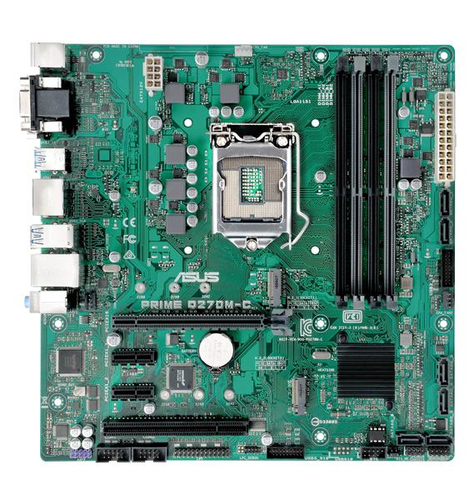

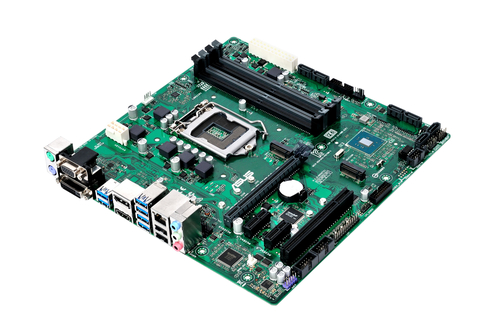

ASUS PRIME Q270M-C - Moederbord - micro ATX - LGA1151 Socket - Q270 - USB 3.0 - Gigabit LAN - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
ASUS Commercial Series
ASUS is the world's biggest and best-known motherboard brand, renowned for our user-focused Design Thinking. We understand the business importance of stability, easy manageability and security. That's why ASUS commercial series boards include, 24/7 stability, smart BIOS tools and guaranteed long-term availability, and our world-class after-sales service effectively reduces many hidden costs of ownership — maximizing your investment over the product lifecycle.
Prime 200 motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.
SafeSlot Core
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Against moisture and corrosion
This innovative moisture-resistant coating provides motherboard protection, and combats the higher levels of humidity that build up in densely-populated environments, such as factories, libraries, data centers and internet cafes. It even minimizes internal corrosion by preventing the adhesion and migration of moisture — prolonging the life of your motherboard.
24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.
Q-Slot
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!
Intel® Q270 Chipset
The Intel® Q270 is a single-chipset design that supports 7th & 6th-generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® Q270 chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.
Ready for 7th Generation and 6th Generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
The ASUS Q270M-C motherboard supports 7th Generation and 6th Generation Intel Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors in the LGA1151 package. Integrated graphics, memory and PCI Express controllers support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
- 5X Protection III: Advanced hardware safeguards for all-round protection
- Efficient management: ASUS Commercial BIOS Kit for easy customization of DMI, BIOS values and boot logos, plus Intel® ME Driver and OEM Activation (OA) tools.*
- Dependable reliability: Stress-tested 24/7 for 168 hours, plus anti-moisture coating for prolonged system lifespan
- Easy assembly: Box-style headers and fixed-position, color-coded connectors to speed up the production line
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Celeron®, Intel® Pentium®
- Processor socket: LGA 1151 (Socket H4)
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133,2400 MHz
- Aantal geheugenslots: 4
- Non-ECC: Ja
- Maximum intern geheugen: 64 GB
- Niet gebufferd geheugen: Ja
Gewicht en omvang
- Breedte: 244 mm
- Diepte: 244 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Intel® I219-LM
- Wake-on-LAN: Ja
Interne aansluitingen
- USB 2.0 aansluitingen: 1
- USB 3.0 (3.1 Gen 1)-aansluitingen: 2
- Aantal SATA III connectors: 6
- Ondersteunde opslagstationinterfaces: SATA III
- Aantal SATA-aansluitingen: 6
- Voorpaneel-connector: Ja
- Aansluitingen voor EATX voedingen: 1
- Aansluiting voor CPU koeler: Ja
- Aansluitingen voor behuizingsventilatoren: 2
- Chassis intrusion aansluiting: Ja
- COM aansluitingen: 2
- TPM connector: Ja
- 12V vermogen-connector: Ja

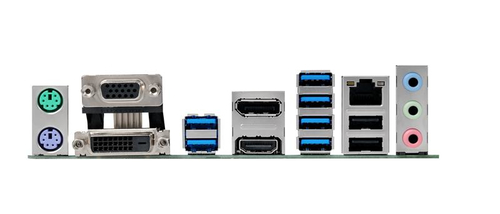

Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 6
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- PS/2 poort(en): 2
- VGA (D-Sub)poort(en): 1
- Aantal HDMI-poorten: 1
- DVI-D poorten: 1
- Aantal DisplayPorts: 1
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
- S/PDIF-in poort: Nee
Opslag-controllers
- Soorten RAID: 0, 1, 5, 10
Inhoud van de verpakking
- Meegeleverde drivers: Ja
Uitbreidingsmodules
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- PCI-slots: 1
- Aantal M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- Grootte BIOS-geheugen: 128 Mbit
- ACPI version: 5.0
Processor speciale functies
- Intel® Extreme Memory Profile (XMP): Ja
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® Q270
- Moederbord form factor: Micro ATX
- Audio-uitgangskanalen: 7.1 kanalen
- Audiochip: Realtek ALC887
€ 124,81
