Artikelnummer: 4103740

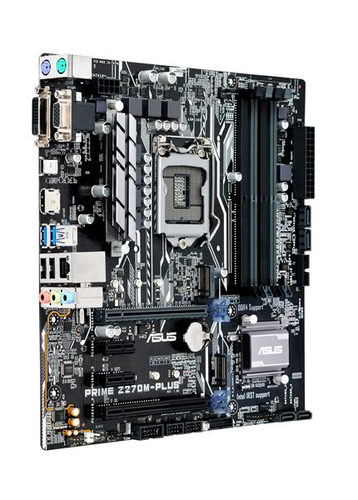

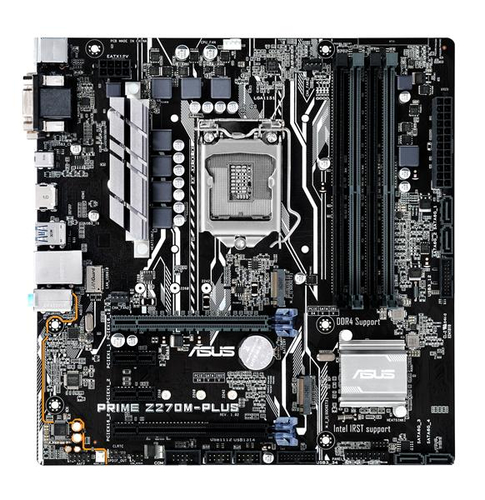

ASUS PRIME Z270M-PLUS - Moederbord - micro ATX - LGA1151 Socket - Z270 - USB 3.0, USB-C - Gigabit LAN - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
Prime 200 motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.
SafeSlot Core
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
LANGuard
Pumped-up throughput. 2.5x higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Proven Compatibility
Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and more
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.
Top-to-bottom Reliability
ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
DDR4 Overclocking Strength in Numbers
Third-generation ASUS T-Topology allows memory frequencies that are higher than ever — to 3866MHz and beyond. Refined manufacturing ensures ultra-consistent quality and minimal crosstalk between custom trace paths, so you'll enjoy the thrill of overclocking DDR4 with time-aligned signaling for superior stability and compatibility.
EPU
With the Energy Processing Unit you'll enjoy system-wide power savings — with CPU-wattage reductions of up to 12W*! The EPU automatically optimizes power consumption and maximizes savings with Away mode: A setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers and reducing power to the graphics cards while you're away.
USB Type-C for convenient connectivity
USB Type-C delivers futureproof device compatibility and high-speed connectivity, enabling data rates of up to 5Gbps. Along with being 33% narrower and nearly 50% slimmer than traditional USB Type-A ports, the USB-C features a fully reversible port design - so connections are made the first time, every time.
Intel® Z270 Chipset
Intel® Z270 is a single-chipset design that supports 7th Generation and 6th Generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium® /Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z270 provides a maximum of 10 USB 3.0 ports, six SATA 6Gb/s ports, and 32Gb/s M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z270 also supports integrated graphics, so you'll enjoy the very latest in graphics performance.
Ready for 7th Generation and 6th Generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
The ASUS Prime 200 series motherboard supports 7th Generation and 6th Generation Intel Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors in the LGA1151 package. Integrated graphics, memory and PCI Express controllers support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
- 5X Protection III: Multiple hardware safeguards for all-round protection
- LED illumination: Lighting control for PCIe slot
- Fan Xpert 4 Core: Flexible controls for ultimate cooling and quietness
- Dual native M.2 and NVMe PCI® RAID support: Lightning-fast storage speeds
- USB Type-C: Convenient reversible connectivity
- DDR4 memory support: Overclock to 3866MHz
- Intel® Optane™ memory ready: Exploit the latest high-speed storage technology
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Celeron®, Intel® Pentium®
- Processor socket: LGA 1151 (Socket H4)
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3733,3866 MHz
- Aantal geheugenslots: 4
- Geheugen kanaal: Dual
- Non-ECC: Ja
- Maximum intern geheugen: 64 GB
- Niet gebufferd geheugen: Ja
Gewicht en omvang
- Breedte: 243,8 mm
- Diepte: 238,8 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Intel® I219-V
- Wake-on-LAN: Ja
Interne aansluitingen
- USB 2.0 aansluitingen: 2
- USB 3.0 (3.1 Gen 1)-aansluitingen: 2
- Aantal SATA III connectors: 4
- S/PDIF uitgang: Ja
- Aansluiting voor audiopaneel aan voorzijde: Ja
- Aansluitingen voor EATX voedingen: 1
- Aansluiting voor CPU koeler: Ja
- Aansluitingen voor behuizingsventilatoren: 2
- COM aansluitingen: 1
- 12V vermogen-connector: Ja

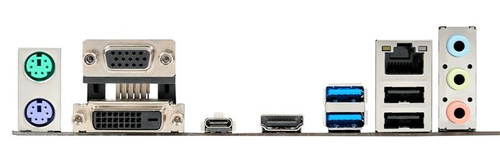

Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type C: 1
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- PS/2 poort(en): 2
- VGA (D-Sub)poort(en): 1
- Aantal HDMI-poorten: 1
- DVI-D poorten: 1
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
- S/PDIF-uitgang: Ja
Opslag-controllers
- Soorten RAID: 0, 1, 5, 10
Uitbreidingsmodules
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Aantal M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- Grootte BIOS-geheugen: 128 Mbit
- ACPI version: 6.0
Grafisch
- Grafische adapter-familie: Intel
- Aantal displays ondersteund: 3
Processor speciale functies
- Intel® Optane™ Memory Ready: Ja
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® Z270
- Moederbord form factor: Micro ATX
- Audio-uitgangskanalen: 7.1 kanalen
- Audiochip: Realtek ALC887
- Ondersteunt Windows: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1 Enterprise x64,Windows 8.1 Pro x64,Windows 8.1 x64
€ 116,90
