Artikelnummer: 4702759

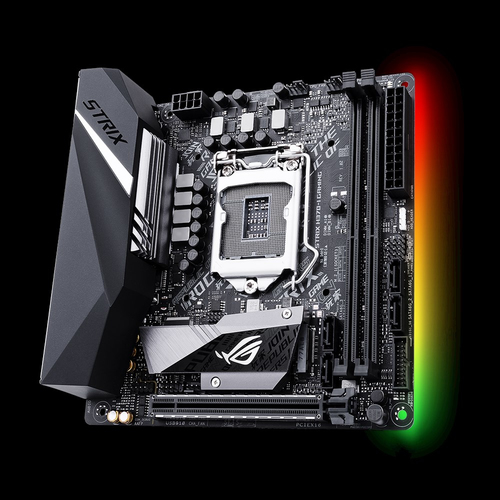

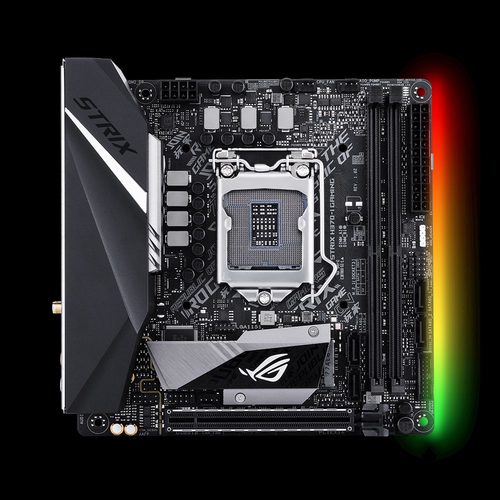

ASUS ROG STRIX H370-I GAMING - Moederbord - mini ITX - LGA1151 Socket - H370 - USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 - Bluetooth, 2 x Gigabit LAN, Wi-Fi - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
AESTHETIC
Up your aesthetic horizons with a new cyber-text design, 3D-printable parts from fan grills to cable combs, and Aura illumination — to create a personalized gaming with immersion that extends from the inside out.
Cyber Outlook
The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.
DIY FRIENDLY DESIGN
DIY-friendly design simplify your PC-building experience, so installation is easier, compatibility assured, and all-around protection to keep you and your rig safe.
PERFORMANCE
Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed.
Cooler By Design
ROG Strix H370-I Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
AUDIO
Proper gaming audio built in means you're ready to play, chat or stream or kick back with videos right out of the gate, with smart routing to direct different audio streams to different devices.
Sonic Studio III
Intuitive Audio-Tuning Suite
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
APP-SPECIFIC PROFILES
Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.
NETWORKING
Loaded with the latest technologies, you'll benefit from connections as quick and simple to make as they are stable and speedy.
Intel Gigabit Ethernet
More Throughput and Less CPU Usage for Great Gaming Experiences
ROG Strix H370-I Gaming features the very latest Intel Ethernet (I219-V) for faster, smoother gaming. Intel's LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power available for gaming.
Intel Integrated Ultra Wi-Fi support
ROG Strix H370-I Gaming features the latest Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps. In fact, its integrated Wireless-AC 9650 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9650 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.
THE POWER OF INTEL
Intel® H370 chipset
The Intel® H370 is a single-chipset design that supports 8th Generation Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H370 chipset provides a maximum of four USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane-speed support, for faster data retrieval. Intel H370 also supports integrated graphics, so you'll enjoy the very latest in graphics performance.
Ready for 8th Generation Intel® LGA1151 Core processors
This motherboard supports 8th Generation Intel® Core™ processors in the LGA1151 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
- Designed exclusively for 8th generation Intel® Core™ processors to maximize connectivity and speed with dual M.2 (1x inside double-decker PCH heatsink, 1x back side), dual Gigabit LAN, onboard 802.11ac WiFi and Intel® Optane™ Memory compatibility
- ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
- Gamer’s Guardian with Fan Xpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
- Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
- Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Core™ i3, Intel Core i5, Intel Core i7
- Processor socket: LGA 1151 (Socket H4)
- Max. aantal SMP-processoren: 1
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133,2400,2666 MHz
- Aantal geheugenslots: 2
- Geheugen kanaal: Dual
- Non-ECC: Ja
- Maximum intern geheugen: 32 GB
- Niet gebufferd geheugen: Ja
Gewicht en omvang
- Breedte: 170 mm
- Diepte: 170 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Intel I219V,Realtek RTL8111H
- Wi-Fi: Ja
- Wi-Fi-standaarden: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
- Bluetooth: Ja
- Bluetooth-versie: 5.0
Interne aansluitingen
- USB 2.0 aansluitingen: 1
- USB 3.0 (3.1 Gen 1)-aansluitingen: 1
- Aantal SATA III connectors: 4
- Audioconnector: Ja
- Aansluiting voor audiopaneel aan voorzijde: Ja
- Voorpaneel-connector: Ja
- ATX Power connector (24-pin): Ja
- Aansluitingen voor EATX voedingen: 1
- Aansluiting voor CPU koeler: Ja
- Aansluitingen voor behuizingsventilatoren: 1
- 12V vermogen-connector: Ja
Aansluitingen achterzijde
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 3
- Aantal poorten USB 3.0 (3.1 Gen 1) Type C: 1
- Aantal poorten USB 3.1 (3.1 Gen 2) Type A: 2
- Aantal Ethernet LAN (RJ-45)-poorten: 2
- Aantal HDMI-poorten: 1
- Aantal DisplayPorts: 1
- DisplayPort versie: 1.2
- S/PDIF-uitgang: Ja
Opslag-controllers
- Soorten RAID: 0, 1, 5, 10
Inhoud van de verpakking
- Meegeleverde kabels: SATA
- Gebruikershandleiding: Ja
- Meegeleverde drivers: Ja
Uitbreidingsmodules
- PCI Express x16 (Gen 3.x) slots: 1
- Aantal M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- Grootte BIOS-geheugen: 128 Mbit
- ACPI version: 6.1
- Clear CMOS jumper: Ja
- Plug and play: Ja
- Systeem Management BIOS (SMBIOS) versie: 3.1
Grafisch
- Maximum geheugen grafische adapter: 1024 MB
- Grafische adapter-familie: Intel
- Maximum resolutie: 4096 x 2304 Pixels
Processor speciale functies
- Intel® Extreme Memory Profile (XMP): Ja
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® H370
- Moederbord form factor: Mini ITX
- Audio-uitgangskanalen: 7.1 kanalen
- Audiochip: Realtek S1220A
- Ondersteunt Windows: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64
€ 130,25
