Artikelnummer: 4702752

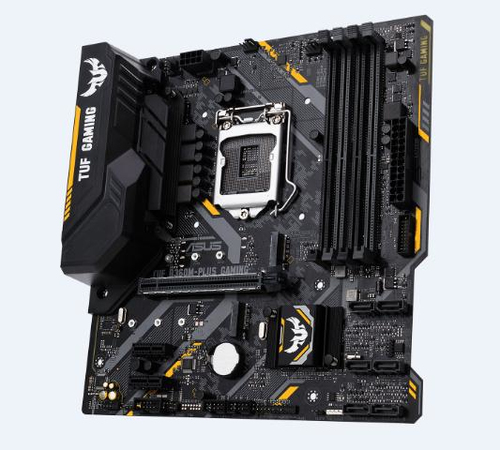

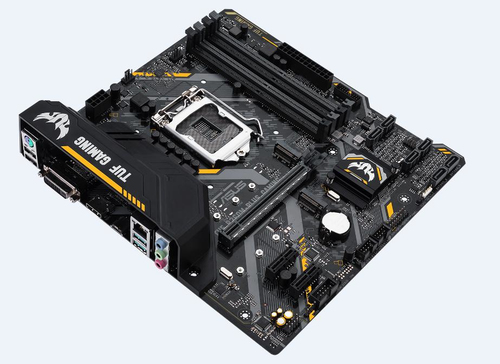

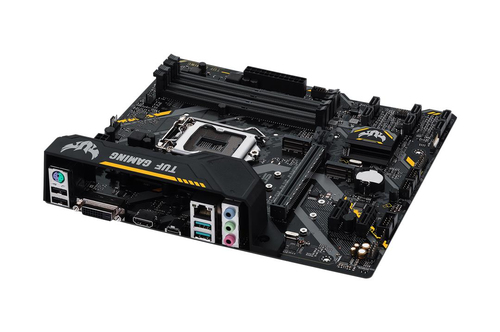

ASUS TUF B360M-PLUS GAMING - Moederbord - micro ATX - LGA1151 Socket - B360 - USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 - Gigabit LAN - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
Arm Your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY Experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
PERFORMANCE LEVEL UP
FLEXIBLE COOLING CONTROLS
Fan Xpert 2+
System temperatures are key to a stable gaming rig ― especially GPU temperatures. TUF Gaming motherboards include FAN Xpert 2+ software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
* ASUS GeForce 700 and later cards supported.
Improved DDR4 Stability
ASUS OptiMem
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the TUF Gaming motherboards to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.
OUTSHINE THE COMPETITION
Edge zone
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
GAMING NETWORKING
TUF LANGuard
Best surge protection
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
ULTRAFAST TRANSFER SPEED
Native 10Gbps USB 3.1 Gen 2 Type-A Support
With dual backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps – or twice as fast as USB 3.1 Gen 1.
Speed Up with Onboard M.2
With x4 PCI Express® 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, making your PC and apps work as fast as possible.
Intel Optane Memory Ready
Intel® Optane™ is a revolutionary non-volatile memory technology supported by TUF Gaming motherboards. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
INTEL CPU AND CHIPSET FEATURES
The Intel® B360 is a single-chipset design that supports 8th Generation Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the B360 chipset provides a maximum of four USB 3.1 Gen 2 ports, two USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane-speed support, for faster data retrieval. Intel B360 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
READY FOR 8TH GENERATION INTEL CORE LGA1151 PROCESSORS
This motherboard supports 8th Generation Intel® Core™ processors in the LGA1151 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
- Intel® Optane™ memory ready: Exploit the latest high-speed storage technology
- Native M.2: Lightning-fast storage speeds
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel® Pentium®
- Processor socket: LGA 1151 (Socket H4)
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133,2400,2666 MHz
- Aantal geheugenslots: 4
- Geheugen kanaal: Dual
- Non-ECC: Ja
- Maximum intern geheugen: 64 GB
- Niet gebufferd geheugen: Ja
Gewicht en omvang
- Breedte: 244 mm
- Diepte: 231 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Intel I219V
Interne aansluitingen
- USB 2.0 aansluitingen: 2
- USB 3.0 (3.1 Gen 1)-aansluitingen: 1
- Aantal SATA III connectors: 6
- Voorpaneel-connector: Ja
- ATX Power connector (24-pin): Ja
- Aansluitingen voor EATX voedingen: 1
- Aansluiting voor CPU koeler: Ja
- Aansluitingen voor behuizingsventilatoren: 2
- EPS power connector (8-pin): Ja
- COM aansluitingen: 1
Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type C: 1
- Aantal poorten USB 3.1 (3.1 Gen 2) Type A: 2
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- PS/2 poort(en): 2
- Aantal HDMI-poorten: 1
- DVI-D poorten: 1
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
Inhoud van de verpakking
- Meegeleverde kabels: SATA
- Gebruikershandleiding: Ja
- Meegeleverde drivers: Ja
Uitbreidingsmodules
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Aantal M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- Grootte BIOS-geheugen: 16 Mbit
- ACPI version: 6.1
- Clear CMOS jumper: Ja
- Systeem Management BIOS (SMBIOS) versie: 3.1
Grafisch
- Maximum geheugen grafische adapter: 1024 MB
- Grafische adapter: HD Graphics
- Maximum resolutie: 4096 x 2160 Pixels
Processor speciale functies
- Intel® Clear Video HD Technology (Intel® CVT HD): Ja
- Intel® Turbo Boost Technology: 2.0
- Intel® Extreme Memory Profile (XMP): Ja
- Intel® Quick Sync Video Technology: Ja
- Intel® Insider™: Ja
- Intel® InTru™ 3D Technology: Ja
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® B360
- Moederbord form factor: Micro ATX
- Audio-uitgangskanalen: 7.1 kanalen
- Ondersteunt Windows: Windows 10
€ 92,62
