Artikelnummer: 3917186

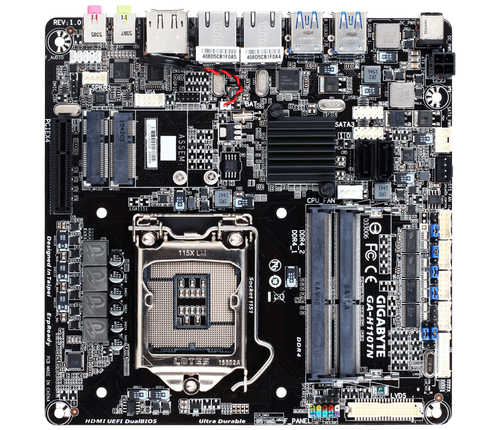

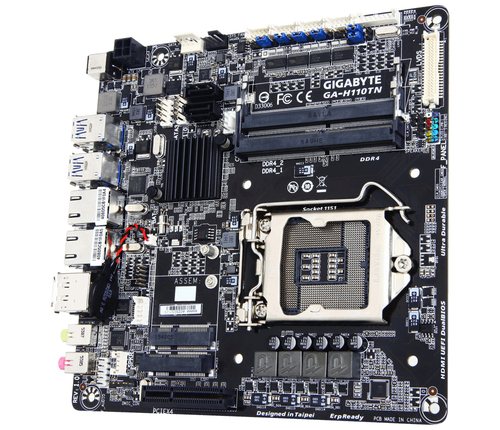

Gigabyte GA-H110TN - 1.0 - moederbord - Thin mini ITX - LGA1151 Socket - H110 - USB 3.0 - 2 x Gigabit LAN - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
- Supports 6th Generation Intel® Core™ Processor
- Dual Channel DDR4 SO-DIMM, 2 DIMMs
- 2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out
- Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
- Mini-PCIe Dual Purpose Slot for mSATA SSD Support
- LVDS Header for System Integrated Flat Panel Display Support

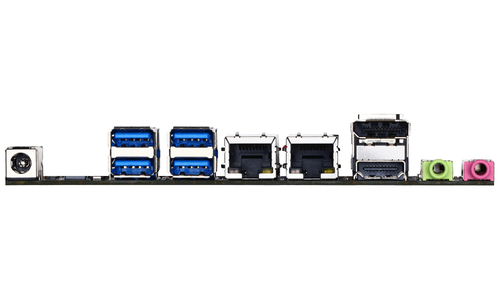

- Rear Panel DisplayPort, HDMI 1.4 Ports & D-sub Header for Multi-Display Connection
- Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
- Dual Intel® GbE LAN for WOL and PXE Support
- Features 4 USB 3.0 and 4 USB 2.0 Ports
- GIGABYTE UEFI DualBIOS™ Technology
- Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
Dual Intel® GbE LAN with WOL and PXE Support
The Dual Intel® Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
Display Port Support
Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
USB 3.0 Ports Onboard
GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
Low Power Loss - Ferrite Core Choke Design
Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.
GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
2x Copper PCB Design (2 oz Copper PCB)
GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Celeron®, Intel® Pentium®
- Processor socket: LGA 1151 (Socket H4)
- Intel® Core i3/i5/i7/i9 series: i3-6xxx,i5-6xxx,i7-6xxx
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: SO-DIMM
- Supported memory clock speeds: 2133 MHz
- Aantal geheugenslots: 2
- Geheugen kanaal: Dual
- Maximum intern geheugen: 32 GB
Gewicht en omvang
- Breedte: 170 mm
- Diepte: 170 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
Interne aansluitingen
- USB 2.0 aansluitingen: 2
- Aantal SATA III connectors: 2
- Ondersteunde opslagstationinterfaces: SATA III
- Aansluiting voor audiopaneel aan voorzijde: Ja
- Voorpaneel-connector: Ja
- Aansluiting voor CPU koeler: Ja
- Chassis intrusion aansluiting: Ja
- Serial port headers: 4
Aansluitingen achterzijde
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 4
- Aantal Ethernet LAN (RJ-45)-poorten: 2
- Aantal HDMI-poorten: 1
Uitbreidingsmodules
- PCI Express x4 slots: 1
- Mini PCI Express slots (vol): 1
- Mini PCI Express slots (half): 1
BIOS
- BIOS type: UEFI AMI
- Grootte BIOS-geheugen: 16 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Ja
Grafisch
- Maximum geheugen grafische adapter: 512 MB
- Grafische adapter: HD Graphics
- Grafische adapter-familie: Intel
- Maximum resolutie: 4096 x 2304 Pixels
- Discrete grafische ondersteuning: Ja
Processor speciale functies
- Intel® vPro™ Technology: Nee
- Intel® Virtualization Technology (Intel® VT): VT-d
- Intel® Trusted Execution Technology: Nee
- Intel® Rapid Storage Technology: Ja
- Intel® High Definition Audio (Intel® HD Audio): Ja
- Intel® ME Firmware-versie: 11
- Conflict Free: Ja
- Intel® Stable Image Platform Program (SIPP): Nee
- Intel® Small Business Advantage (Intel® SBA): Nee
- Intel® Smart Response Technology: Nee
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Rapid Storage Technology enterprise: Nee
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® H110
- Moederbord form factor: Mini ITX
- Audio-uitgangskanalen: 7.1 kanalen
- Audiochip: Realtek ALC887
- Ondersteunt Windows: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1 Enterprise x64,Windows 8.1 Pro x64,Windows 8.1 x64
€ 117,01
