Artikelnummer: 3717577

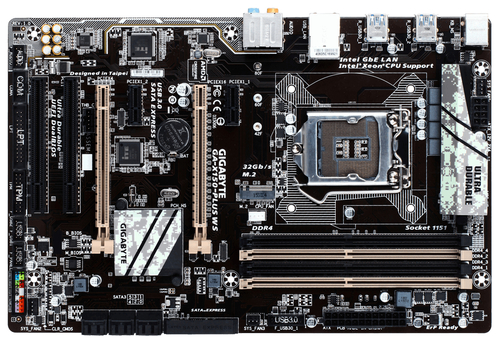

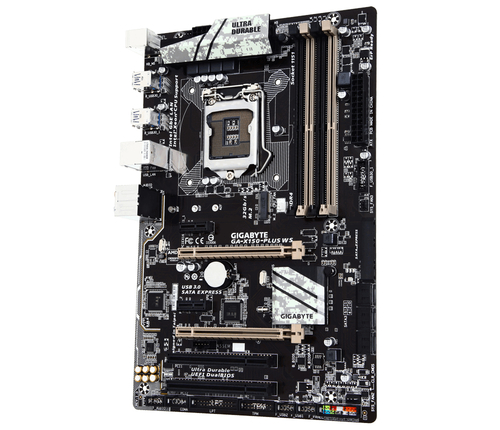

Gigabyte GA-X150-PLUS WS - 1.0 - moederbord - ATX - LGA1151 Socket - C232 - USB 3.0 - Gigabit LAN - HD Audio (8-kanaals)
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE C232 Series motherboards support the Intel® Xeon® E3-1200 v5 processor and 6th Gen. Intel® Core™ i3/Pentium®/Celeron® processors, bringing cutting edge features and ultimate performance to your next PC build.
Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Intel® GbE LAN with cFosSpeed
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in a crowded LAN environments.
All New GIGABYTE App Center Including EasyTune™, Cloud Station™ Utilities and More...
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Celeron®, Intel® Pentium®
- Processor socket: LGA 1151 (Socket H4)
- Max. aantal SMP-processoren: 1
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133 MHz
- Aantal geheugenslots: 4
- Geheugen kanaal: Dual
- Non-ECC: Ja
Gewicht en omvang
- Breedte: 305 mm
- Diepte: 200 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
Interne aansluitingen
- USB 2.0 aansluitingen: 2
- USB 3.0 (3.1 Gen 1)-aansluitingen: 1
- Aantal SATA III connectors: 6
- Ondersteunde opslagstationinterfaces: M.2, SATA III
- Aantal SATA Express-connectors: 1
- Aansluiting voor audiopaneel aan voorzijde: Ja
- ATX Power connector (24-pin): Ja
- Aansluiting voor ventilator van voeding: Ja
- EPS power connector (8-pin): Ja
- GAME/MIDI aansluiting: Ja
- TPM connector: Ja
- Parallele connector: Ja
- Serial port headers: 1
- Thunderbolt-headers: 1
Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 4
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- PS/2 poort(en): 2
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
Opslag-controllers
- Soorten RAID: 0, 1, 5, 10
Inhoud van de verpakking
- Meegeleverde software: Norton Internet Security (OEM version)\ncFosSpeed
Uitbreidingsmodules
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 2
- PCI-slots: 2
- Aantal M.2 (M) slots: 1
BIOS
- BIOS type: EFI AMI
- Grootte BIOS-geheugen: 16 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Ja
Grafisch
- Ondersteuning voor parallel processing: 2-Way CrossFireX
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® C232
- Moederbord form factor: ATX
- Audio-uitgangskanalen: 7.1 kanalen
- PC gezondheids monitor: CPU, Ventilator, Temperatuur, Spanning
- Ondersteunt Windows: Ja
€ 94,83
