Artikelnummer: 3780992

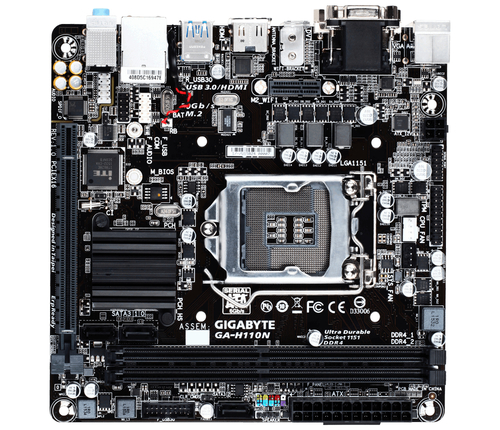

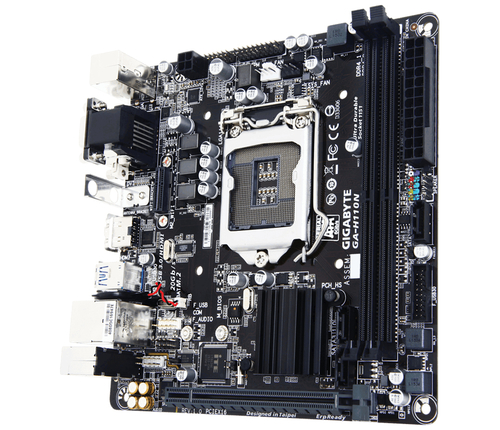

Gigabyte GA-H110N - 1.0 - moederbord - mini ITX - LGA1151 Socket - H110 - USB 3.0 - Gigabit LAN - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
GIGABYTE Ultra Durable Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel Core processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional users.
Fast onboard storage with 20Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.
HDMI - The Next Generation Multimedia Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
Humidity Protection with Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
High ESD Ethernet & USB Port Protection
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
High Temperature Protection Lower RDS(on) MOSFETs Design
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
Realtek GbE LAN with cFosSpeed Internet Accelerator Software
Realtek GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek GbE consumes significant less power when it’s in idle state in comparison with others.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Cloud Station
GIGABYTE Cloud Station is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
USB 3.0 Ports Onboard
With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.
INTEL SMALL BUSINESS BASICS
With 6th Generation Intel Core Processor
Security and Productivity Solution with built in IT
New compelling usages in one intuitive Customizable UI
- Supports 7th / 6th Generation Intel® Core™ Processors
- Dual Channel DDR4, 2 DIMMs
- PCIe Gen2 x4 M.2 Connector with up to 20Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- M.2 Socket 1 slot for wireless networking card
- 8-channel HD Audio with High Quality Audio Capacitors
- Audio Noise Guard with LED Trace Path Lighting
- HDMI 1.4, DVI-D, D-sub ports for multiple display
- Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
- All new GIGABYTE™ APP Center, simple and easy use
- Support Intel® Small Business Basics
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Celeron®, Intel® Pentium®
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133 MHz
- Geheugen kanaal: Dual
- Non-ECC: Ja
- Ondersteunende UDIMM module capaciteit: 8GB
- Ondersteunende UDIMM module capaciteit: 8GB,16GB
- Maximum intern geheugen: 32 GB
Gewicht en omvang
- Breedte: 170 mm
- Diepte: 170 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
Interne aansluitingen
- USB 2.0 aansluitingen: 1
- USB 3.0 (3.1 Gen 1)-aansluitingen: 1
- Ondersteunde opslagstationinterfaces: SATA
- Aantal SATA-aansluitingen: 3
- S/PDIF uitgang: Ja
- Aansluiting voor audiopaneel aan voorzijde: Ja
- ATX Power connector (24-pin): Ja
- Aansluiting voor CPU koeler: Ja
- Chassis intrusion aansluiting: Ja
- TPM connector: Ja
- Serial port headers: 1

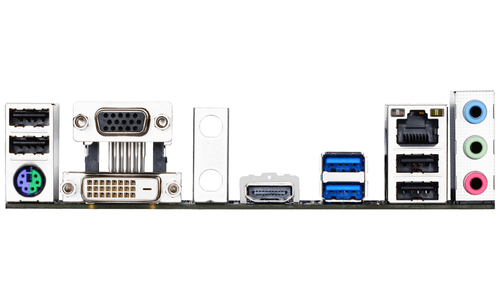

Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 4
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 2
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- PS/2 poort(en): 1
- VGA (D-Sub)poort(en): 1
- Aantal HDMI-poorten: 1
- DVI-D poorten: 1
- Microfoon, line-in ingang: Ja
- WiFi-AP antenna jack: 2
Opslag-controllers
- Ondersteunde types opslag-drives: HDD,SSD
Inhoud van de verpakking
- Meegeleverde software: Norton Internet Security (OEM version), cFosSpeed
Uitbreidingsmodules
- PCI Express x16 slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI-slots: 1
- Aantal M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- Grootte BIOS-geheugen: 64 Mbit
- ACPI version: 5.0
Overige specificaties
- Andere kenmerken: 3D OSD, @BIOS, AutoGreen, Cloud Station, EasyTune, Fast Boot, On/Off Charge, Smart TimeLock, Smart Keyboard, Smart Backup, System Information Viewer, USB Blocker, Q-Flash, Smart Switch, Xpress Install
Grafisch
- Maximum geheugen grafische adapter: 512 MB
- Grafische adapter-familie: Intel
- Maximum resolutie: 4096 x 2160 Pixels
- Aantal displays ondersteund: 2
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® H110
- Moederbord form factor: Mini ITX
- Audio-uitgangskanalen: 7.1 kanalen
- Ondersteunt Windows: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1 Enterprise x64,Windows 8.1 Pro x64,Windows 8.1 x64
€ 61,01
