Artikelnummer: 4761209
Gigabyte BRIX s GB-BLCE-4105 (rev. 1.0) - Barebone - Ultra Compact PC Kit - 1 x Celeron J4105 / 1.5 GHz - UHD Graphics 600 - GigE
The Perfect Fit for Any Space
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
Intel® Celeron® Processor
GIGABYTE BRIX supports Intel third-generation low-power quad-core SoC processors which feature power-efficient 10W Intel® Celeron models. From a simple internet access point to a high end multimedia station, the GIGABYTE BRIX a broad range of usage scenarios and the ultimate space flexibility. GIGABYTE BRIX is expected to deliver up to 23% improvement in productivity over previous generation.
Supports DDR4 Memory
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2400MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
Connecting the Future - USB Type-C™: The World's Next Universal Connector
Reversible USB Type-C™ with USB 3.0
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed.
SuperSpeed 4K HD Entertainment
Supporting the Newest Standards in Multimedia
GIGABYTE ensures users won't be limited by the standards or connections on the BRIX, by including HDMI 2.0 and support for HDCP 2.2 users can rest assured that their device will be able to display content to its full potential. The BRIX supports native resolutions of 4K at 60Hz, presenting unrivaled visual clarity and stunning realism to owners of UHD displays.
Multi-display productivity with HDMI 2.0 & DisplayPort
BRIX supports up to three independent displays through HDMI 2.0 and a DisplayPort without the need for an additional graphics card. Support for two display is only possible with daisy-chain connections through Display Port.
Graphics that Captivate
Intel® HD Graphics deliver 10% more performance than its predecessor. With the new media engine users are able to, watch, create, edit, share and game all with captivating visuals. This media engine offers HEVC 10-bit hardware acceleration which improves upon the 4K viewing and content creation performance significantly versus previous generation processors. The BRIX now has the ability to drive premium content up to 4K UHD, so users can enjoy amazing and vibrant multimedia experiences on compatible displays.
2.5" Hard Drive Support
Utilizing SATA III 6 Gb/s high speed data transfer technology, the GIGABYTE BRIXs supports the installation of one 2.5” SATA 6Gbps HDD or Solid State Drive (SSD) and one M.2 2280 SSD module. This allows for optimized storage configurations which combine fast M.2 performance with larger capacity 2.5” hard drive.
Ready Mode Technology
Now there’s no waiting to resume activity on your PC. With Intel® Ready Mode Technology, your PC resumes to fully functional in an instant. It works by providing an alternative to traditional sleep—a quiet, low power state similar to the kind used by your cell phone and tablet.
With Intel® Ready Mode Technology You Can…
Access Your Digital Files - From Anywhere, Anytime
Get remote access to your PC through applications on your phone and tablet to download photos, video, large files and more, no matter where you are.
Get Help From Your Digital Assistant Just by Asking
An always available PC complements Microsoft Windows® 10 enabled experiences Cortana. When you need Cortana, all you have to do is say "Hey Cortana," and your digital assistant is instantly at your service.
Keep Everything Up-to-Date With Automatic Syncing
Set your Intel® Ready Mode Technology - equipped PC to sync and store photos and files across devices automatically when you arrive at home or the office. And application updates? They're automatic too, which means you'll always work with the latest versions of your favorite tools.
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
- Features Intel® Celeron® Processor J4105
- Ultra compact PC design at only 0.63L (46.8 x 112.6 x 119.4mm)
- Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x M.2 SSD (2280) slot
- 2 x SO-DIMM DDR4 slots
- Intel® IEEE 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card

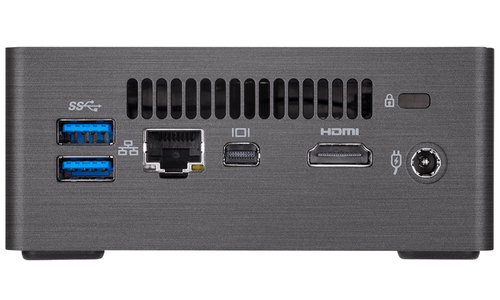

- HDMI plus Mini DisplayPort Outputs (Supports dual displays)
- 4 x USB 3.0 (1* USB Type-C™)
- Gigabit LAN

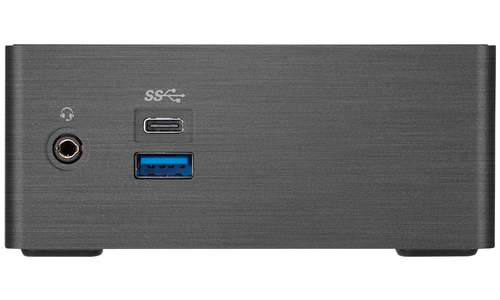

- Headphone Jack with Microphone
- VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
Processor
- Type processor: Ja
- Processorfamilie: Intel® Celeron®
- Frequentie van processor: 1,50 GHz
- Processormodel: J4105
- Processor lithografie: 14 nm
- Maximale turbofrequentie van processor: 2,50 GHz
- Aantal processorkernen: 4
- Processor aantal threads: 4
- Thermal Design Power (TDP): 10 W
Geheugen
- Geheugen slots type: SO-DIMM
- Aantal geheugenslots: 2
- Maximum intern geheugen: 8 GB
- Supported memory clock speeds: 2400 MHz
- Ondersteunde geheugen types: DDR4-SDRAM
Audio
- Audiosysteem: Realtek ALC255
Poorten & interfaces
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 3
- Aantal HDMI-poorten: 1
- Aantal poorten USB 3.0 (3.1 Gen 1) Type C: 1
- HDMI versie: 2.0a
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- Mini DisplayPort kwantiteit: 1
- Aansluiting voor netstroomadapter: Ja
- DisplayPort versie: 1.2a
- Combo koptelefoon/microfoon port: Ja
Gewicht en omvang
- Breedte: 112,6 mm
- Diepte: 119,4 mm
- Hoogte: 46,8 mm
Energie
- Soort voeding: Externe AC-adapter
- Netvoeding: 65 W
- Aantal voedingen: 1
- AC invoer voltage: 100 - 240 V
- AC-adapter, uitgangsspanning: 19 V
- AC-adapter, uitgangsstroom: 2,1 A
Eisen aan de omgeving
- Temperatuur, in bedrijf: 0 - 35 °C
- Temperatuur bij opslag: -20 - 60 °C
Netwerk
- Ethernet LAN: Ja
- Wi-Fi: Ja
- Wi-Fi-standaarden: IEEE 802.11ac
- LAN controller: Realtek RTL8111HS
- Bluetooth: Ja
- Bluetooth-versie: 4.2
Opslagmedia
- Ondersteunde types opslag-drives: HDD,SSD
- Opslagschijf afmetingen ondersteund: 2.5"
- Opslag schijf-interface: SATA III
- Aantal storage drives ondersteund: 1
Inhoud van de verpakking
- Snelstartgids: Ja
- Meegeleverde drivers: Ja
- Inclusief AC-adapter: Ja
Uitbreidingsmodules
- PCI Express slots versie: 2.0
- Aantal M.2 (M) slots: 1
Design
- Type behuizing: UCFF
- Kleur van het product: Zwart
- Producttype: Mini PC barebone
- Paneelmontage-interface: 75 x 75,100 x 100 mm
- Bevestigingsmogelijkheid voor kabelslot: Ja
- Kabelslot sleuf type: Kensington
- VESA-montage: Ja
Grafisch
- Ingebouwde grafische adapter: Ja
- Grafische adapter-familie: Intel
Processor speciale functies
- Ingebouwde opties beschikbaar: Ja
- Intel® Anti-Theft Technology (Intel® AT): Nee
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Turbo Boost Technology: Nee
- Intel® Hyper Threading Technology (Intel® HT Technology): Nee
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Intel® 64: Ja
- Idle States: Ja
- Enhanced Intel SpeedStep Technology: Ja
- Thermal Monitoring Technologies: Ja
- Intel® Identity Protection Technology (Intel® IPT): Ja
- Execute Disable Bit: Ja
- Intel® Secure Key: Ja
- Intel® Smart Response Technology: Nee
Prestatie
- Maximum resolutie: 4096 x 2160 Pixels
- Ondersteunt Windows: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64
Moederbord
- Processor socket: BGA 1090
€ 117,96
