Artikelnummer: 4966759
Gigabyte Z390 AORUS XTREME - 1.0 - moederbord - uitgebreide ATX - LGA1151 Socket - Z390 - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - Bluetooth, 10 Gigabit LAN, Gigabit LAN, Wi-Fi, 5 Gigabit Ethernet, 2.5 Gigabit LAN - interne afbeeldingen (CPU vereist) -
Innovative design, cutting-edge functionality, state-of-the-art aesthetics, sophisticated thermal design, next generation network connectivity ,Hi-Fi level audio system. Z390 AORUS XTREME is the new definition of a flagship motherboard.
Extreme Power Design
To unleash the full potential of the new Intel 8-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z390 AORUS XTREME is a true beast among motherboards.
EXTREME Thermal Design
Z390 AORUS XTREME use some unprecedented and innovative thermal design to ensure stability and low temperature under full loading application and gaming.
Unparalleled Performance
Hungry for better performance? Z390 AORUS XTREME bundles exclusive OC Touch Panel, supports high frequency XMP memory, and full SSD thermal guard to make sure you get the maximum full system performance.
Next Generation Connectivity
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. Z390 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Definitive Aesthetics
GIGABYTE ID team designs Z390 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.
Anti-pop Circuit Design
Prevents popping noise when plugging in and removing the audio jack
Auto Impedance Sensing
Auto detects headphone coils from 6 to 600 Ω and automatically adjusts proper output power
Precise TXC Oscillator
Provides precise time triggers to Digital-Analog Converters.
Audiophile Grade Capacitors
Famous WIMA capacitors are used as feedback signal processing to deliver crystal and balanced sound.
Independent Analog Power
Drives clean analog power for audio components to ensure minimal noise.
Power Purifier
Supplies undisturbed power to the Digital-Analog Converters
Ultra Durable
GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the Z390 AORUS XTREME and reinforce every slot to make each of them solid and durable.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. Z390 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard.
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane™ Memory Ready
- 16 Phases IR Digital VRM Solution with PowIRstage
- Cutting-edge Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate
- Onboard Intel CNVI 802.11ac 2x2 Wave 2 Wi-Fi with All new AORUS Antenna
- 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA audio capacitors
- AQUANTIA® 10GbE BASE-T LAN and Intel® Gigabit LAN with cFosSpeed
- Intel® Thunderbolt™ 3 onboard
- Exclusive RGB FAN COMMANDER and OC Touch for professional casemodders and overclockers
- USB TurboCharger for mobile device fast charge support
- RGB FUSION with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Front USB 3.1 Gen 2 Type-C™ Header
- Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Triple Thermal Guards
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®
- Processor socket: LGA 1151 (Socket H4)
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266 MHz
- Aantal geheugenslots: 4
- Geheugen kanaal: Dual
- ECC: Ja
- Non-ECC: Ja
- Maximum intern geheugen: 64 GB
- Niet gebufferd geheugen: Ja
Gewicht en omvang
- Breedte: 305 mm
- Diepte: 271 mm
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: 2.5 Gigabit Ethernet,5 Gigabit Ethernet,10 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
- Wi-Fi: Ja
- Wi-Fi-standaarden: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
- Bluetooth: Ja
- Bluetooth-versie: 5.0
Interne aansluitingen
- USB 2.0 aansluitingen: 2
- USB 3.0 (3.1 Gen 1)-aansluitingen: 1
- Aantal SATA III connectors: 6
- Ondersteunde opslagstationinterfaces: M.2, SATA III
- Aansluiting voor audiopaneel aan voorzijde: Ja
- Voorpaneel-connector: Ja
- ATX Power connector (24-pin): Ja
- Aansluiting voor CPU koeler: Ja
- TPM connector: Ja
- 12V vermogen-connector: Ja
- RGB LED-aansluitrail: Ja

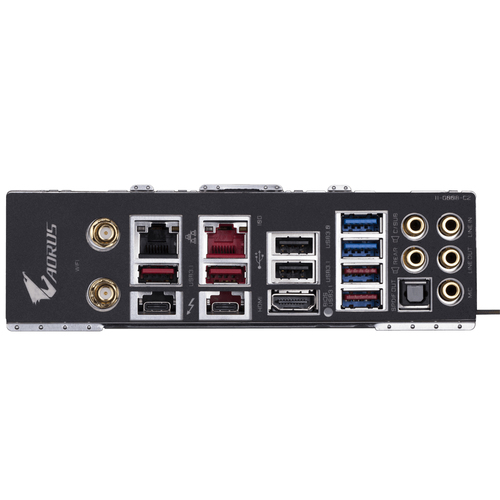

Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 2
- Aantal poorten USB 3.1 (3.1 Gen 2) Type A: 4
- Aantal poorten USB 3.1 (3.1 Gen 2) Type C: 2
- Aantal Ethernet LAN (RJ-45)-poorten: 2
- Aantal HDMI-poorten: 1
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
- S/PDIF-uitgang: Ja
Opslag-controllers
- Ondersteunde types opslag-drives: HDD,SSD
- Soorten RAID: 0, 1, 5, 10
Inhoud van de verpakking
- Meegeleverde software: Norton® Internet Security (OEM version)\ncFosSpeed\nXSplit Gamecaster + Broadcaster (12 months license)
Uitbreidingsmodules
- PCI Express x1 slots: 2
- PCI Express x16 slots: 3
BIOS
- BIOS type: UEFI AMI
- Grootte BIOS-geheugen: 32 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Ja
- Plug and play: Ja
- Versie Desktop Management Interface (DMI): 2.7
- Systeem Management BIOS (SMBIOS) versie: 2.7
- DualBIOS: Ja
- Clear CMOS knop: Ja
Grafisch
- Maximum geheugen grafische adapter: 1000 MB
- Maximum resolutie: 4096 x 2304 Pixels
Processor speciale functies
- Intel® Extreme Memory Profile (XMP): Ja
Kenmerken
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel Z390 Express
- Moederbord form factor: Verlengd ATX
- Audio-uitgangskanalen: 7.1 kanalen
- Audiochip: Realtek ALC1220-VB
- Supported processor sockets: LGA 1151 (Socket H4)
- Ondersteunt Windows: Windows 10
- Certificering: CE, FCC
€ 461,46
