Artikelnummer: 3675140

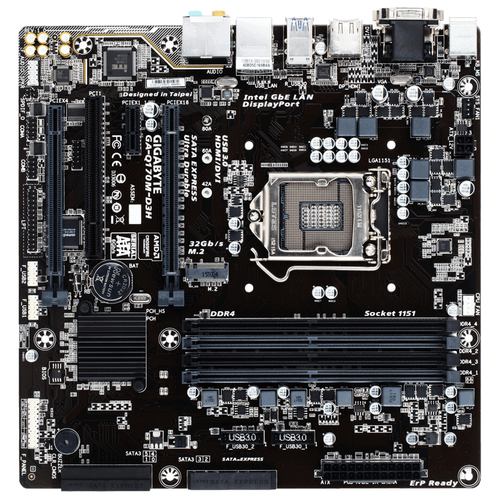

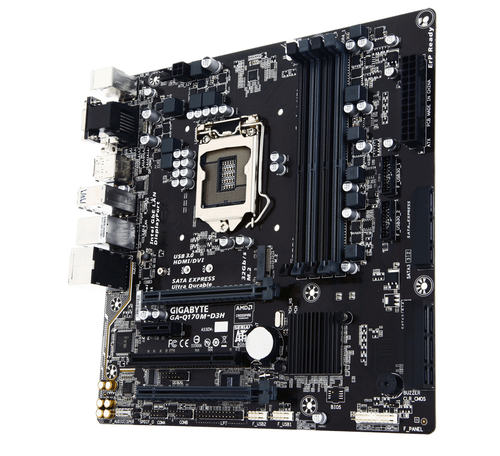

Gigabyte GA-Q170M-D3H - 1.0 - moederbord - micro ATX - LGA1151 Socket - Q170 - USB 3.0 - Gigabit LAN - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.
Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Intel® GbE LAN Internet Accelerator Networking
The Q170M-D3H motherboard comes equipped with Intel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.
Intel® vPro™ Technology
Intel® vPro™ technology is a set of security and manageability capabilities built into Intel® Core™ processor family, Intel® chipsets, and network adapters which can simplify and accelerate critical IT functions...more
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
All New GIGABYTE App Center Including EasyTune™, Cloud Station™ Utilities and More...
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
Display Port Support
Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI™ - The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
INTEL® SMALL BUSINESS ADVANTAGE
With 6th Generation Intel® Core™ Processor
Hardware-enhanced Security and Productivity Solution with built in IT
Combination of Firmware and Software usages in one intuitive Customizable UI
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Celeron®
- Processor socket: LGA 1151 (Socket H4)
- Max. aantal SMP-processoren: 1
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133 MHz
- Aantal geheugenslots: 4
- Geheugen kanaal: Dual
- Non-ECC: Ja
- Maximum intern geheugen: 64 GB
Gewicht en omvang
- Breedte: 244 mm
- Diepte: 244 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
Interne aansluitingen
- USB 2.0 aansluitingen: 2
- USB 3.0 (3.1 Gen 1)-aansluitingen: 2
- Aantal SATA III connectors: 6
- Ondersteunde opslagstationinterfaces: M.2, SATA III
- Aantal SATA Express-connectors: 3
- S/PDIF uitgang: Ja
- Aansluiting voor audiopaneel aan voorzijde: Ja
- ATX Power connector (24-pin): Ja
- Aansluiting voor ventilator van voeding: Ja
- Aansluiting voor CPU koeler: Ja
- Peripheral (Molex) power connectors (4-pin): 1

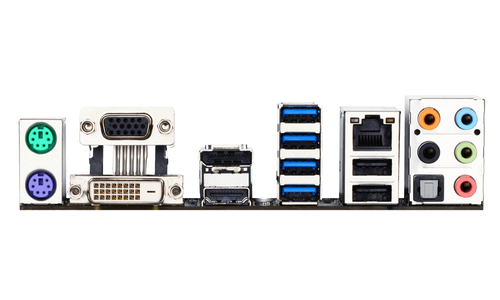

Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 4
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- PS/2 poort(en): 2
- VGA (D-Sub)poort(en): 1
- Aantal HDMI-poorten: 1
- DVI-D poorten: 1
- Aantal DisplayPorts: 1
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
- S/PDIF-uitgang: Ja
Opslag-controllers
- Soorten RAID: 0, 1, 5, 10
Inhoud van de verpakking
- Meegeleverde software: Norton Internet Security (OEM version)\nIntel Small Business Advantage\nIntel Smart Response Technology
Uitbreidingsmodules
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 2
- PCI-slots: 1
- Aantal M.2 (M) slots: 1
BIOS
- BIOS type: EFI AMI
- Grootte BIOS-geheugen: 16 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Ja
Grafisch
- Maximum geheugen grafische adapter: 512 MB
- Ondersteuning voor parallel processing: 2-Way CrossFireX
- Grafische adapter-familie: Intel
- Maximum resolutie: 4096 x 2160 Pixels
- Ingebouwde grafische adapter: Ja
- Aantal displays ondersteund: 3
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® Q170
- Moederbord form factor: ATX
- Audio-uitgangskanalen: 7.1 kanalen
- PC gezondheids monitor: CPU, Ventilator, Temperatuur, Spanning
- Ondersteunt Windows: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
€ 113,24
