Artikelnummer: 4357427

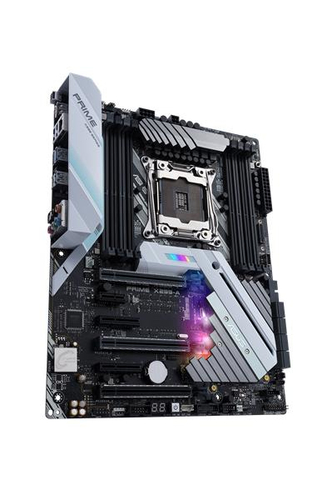

PRIME X299-A-BE/90MB0U40-M0EAY0 Intel® Core" X-Series Processor Family on LGA 2066 socket
ASUS Prime X299-A is the ATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, to explore, to enjoy and to push the boundaries, look no further than Prime X299-A.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
OC design- ASUS PRO Clock II technology
A dedicated base-clock generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing the flexibility to extract every ounce of performance from Intel® Core™ X-series processors.
VROC
Upgrade your RAID
Unleash the Prime X299-A Virtual RAID on CPU (VROC) feature with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives — for a total bandwidth of up to 128Gbps. With VROC, you can utilize CPU PCIe lanes to configure a bootable RAID array, eliminating traditional DMI bottlenecks, so that storage transfers aren't held back by other traffic.
ThunderboltEX 3 Card
Experience blistering ThunderboltTM 3 speeds and any-way-up connectivity
Prime X299-A offers support for ThunderboltEX 3 card, an Intel-certified Thunderbolt™ 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable — up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices; utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices; and supports the USB Power Delivery specification for fast, high-power charging of up to 36W.
Intel® Core™ X-series processors for LGA 2066 socket
Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.
Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.
Intel X299 chipset
The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel Core i7
- Processor socket: LGA 2066
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133,2400,2666,3600,4000 MHz
- Aantal geheugenslots: 8
- Non-ECC: Ja
- Maximum intern geheugen: 128 GB
- Niet gebufferd geheugen: Ja
Gewicht en omvang
- Breedte: 305 mm
- Diepte: 244 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- LAN controller: Intel® I219-V
- Wake-on-LAN: Ja
Interne aansluitingen
- USB 2.0 aansluitingen: 1
- USB 3.0 (3.1 Gen 1)-aansluitingen: 2
- USB 3.1-connectoren (3.1 Gen 2): 1
- Aantal SATA III connectors: 8
- Aansluitingen voor EATX voedingen: 1
- Aansluiting voor CPU koeler: Ja
- Aansluitingen voor behuizingsventilatoren: 2

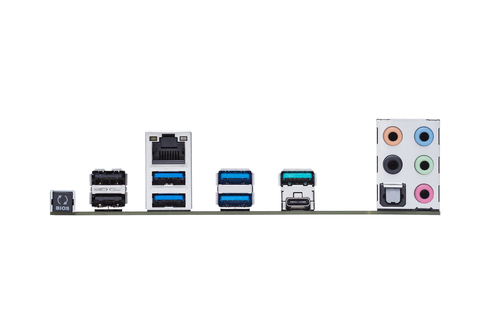

Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 4
- Aantal poorten USB 3.1 (3.1 Gen 2) Type A: 1
- Aantal poorten USB 3.1 (3.1 Gen 2) Type C: 1
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
- S/PDIF-uitgang: Ja
Opslag-controllers
- Soorten RAID: 0, 1, 5, 10
Inhoud van de verpakking
- Gebruikershandleiding: Ja
Uitbreidingsmodules
- Aantal M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- Grootte BIOS-geheugen: 128 Mbit
- ACPI version: 6.0
- Clear CMOS jumper: Ja
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® X299
- Moederbord form factor: ATX
- Audio-uitgangskanalen: 7.1 kanalen
- Ondersteunt Windows: Windows 10
€ 262,16
