Artikelnummer: 4480785
ASUS TUF Z370-PRO GAMING - Moederbord - ATX - LGA1151 Socket - Z370 - USB 3.1 Gen 1, USB 3.1 Gen 2 - Gigabit LAN - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
Arm Your Battlestation
TUF Gaming motherboards are built to survive and thrive on every battlefield. Infused with the military spirit of The Ultimate Force (TUF) and styled to strike fear into the hearts of every enemy, TUF Z370-Pro Gaming is the perfect foundation for your ATX battle rig: a solid, durable and camouflaged force that's fit for today's fights, and with the durability to handle multiple upgrades for the campaigns of tomorrow.
Gaming Audio
DTS CUSTOM FOR GAMING HEADSETS
Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.

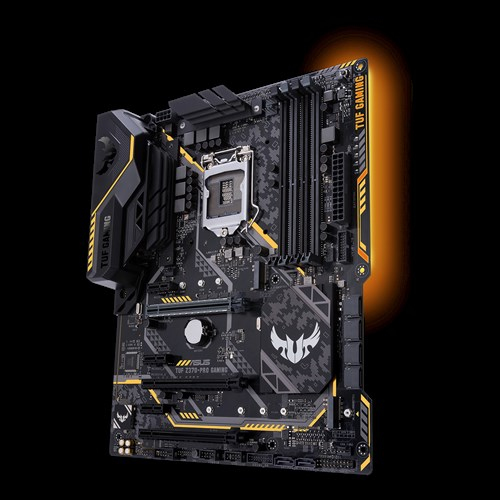

BRIGHTEN UP YOUR BUILD
LED-ILLUMINATED CONTROL FOR PCB EDGE
TUF Z370-Pro Gaming's color accents are complemented by an edge-side LED that glows in attention-grabbing orange. Instruct it to shine continuously for always-on atmosphere, extinguish it for twilight play, or have it pulse as though alive — a machine that appears to breathe!
Intel Ethernet
MORE THROUGHPUT, LESS CPU USAGE
TUF Z370-Pro Gaming features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
TUF LANGuard
BEST SURGE PROTECTION
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Turbo LAN
NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritise game-related data transmissions, smoothing network operations every time you play!
Make Your Memory Go Faster
ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing DDR4 memory speeds of 4000MHz with all slots populated — and even beyond!
One Click Overclocking
You don't need to be a technical expert to experience exhilarating overclocking performance. TUF Z370-Pro Gaming incorporates the OC Tuner feature for efficient operation with precise voltage control and monitoring. OC Tuner takes all the hassle out of complex tuning by overclocking your system with a single click — it couldn't be easier!
Multi-GPU support
With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2-way configurations, TUF Z370-Pro Gaming enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K resolutons and greater. The board even comes with the ASUS SLI HB Bridge, making it easy to combine the power of your NVIDIA graphics cards!
Intel Optane Memory ready
Intel® Optane™ is a revolutionary non-volatile memory technology supported by TUF Z370-Pro Gaming. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
Fan Xpert 4 Core
TUF Z370-Pro Gaming features the most comprehensive fan controls ever, configurable via Fan Xpert 4 Core and our award-winning UEFI BIOS.
EAZY PC DIY EXPERIENCE
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF gaming alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Antec®, Apacer®, Ballistix, Cooler Master®, Corsair®, Deepcool, Enermax, G.Skill, GeIL®, In Win, Scythe, SilverStone, Team Group and XPG. A growing range of compliant parts, from PC cases and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships to make the TUF Gaming Alliance ever stronger.
TUF PROTECTION
SAFESLOT
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
ESD GUARDS
Electrostatic discharge protection
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge.
TUF COMPONENTS
TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF CAPACITORS
+20% temperature tolerance and 5X-longer lifespan.
TUF MOSFETS
Certified military-grade MOSFETs with lower RDS(on)*.
*Lower RDS(on) results in better power efficiency and reduced heat generation.
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
- Exclusive DTS Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
- Native M.2: Built-in interface for latest SSDs, delivering lightning-fast storage speeds of up to 32Gbps
Processor
- Processorfabrikant: Intel
- Compatibele processors: Intel® Core™ i3, Intel Core i5, Intel Core i7
- Processor socket: LGA 1151 (Socket H4)
- Max. aantal SMP-processoren: 1
Geheugen
- Ondersteunde geheugen types: DDR4-SDRAM
- Geheugen slots type: DIMM
- Supported memory clock speeds: 2133,4000 MHz
- Aantal geheugenslots: 4
- Geheugen kanaal: Dual
- ECC: Nee
- Non-ECC: Ja
- Maximum intern geheugen: 64 GB
- Niet gebufferd geheugen: Ja
Gewicht en omvang
- Breedte: 244 mm
- Hoogte: 305 mm
Energie
- Type stroombron: ATX
Netwerk
- Ethernet LAN: Ja
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Intel® I219-V
Interne aansluitingen
- USB 2.0 aansluitingen: 2
- USB 3.0 (3.1 Gen 1)-aansluitingen: 2
- Aantal SATA III connectors: 6
- Ondersteunde opslagstationinterfaces: M.2, SATA III
- Aantal SATA-aansluitingen: 6
- Aansluiting voor audiopaneel aan voorzijde: Ja
- ATX Power connector (24-pin): Ja
- Aansluiting voor CPU koeler: Ja
- Aansluitingen voor behuizingsventilatoren: 2
- EPS power connector (8-pin): Ja
- COM aansluitingen: 1
- TPM connector: Ja

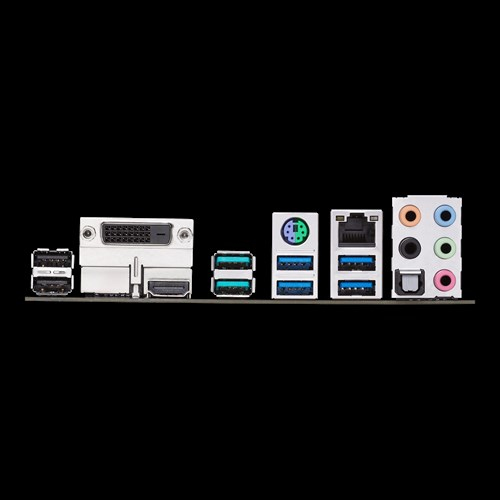

Aansluitingen achterzijde
- Aantal USB 2.0-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 4
- Aantal poorten USB 3.1 (3.1 Gen 2) Type A: 2
- Aantal Ethernet LAN (RJ-45)-poorten: 1
- PS/2 poort(en): 1
- Aantal HDMI-poorten: 1
- DVI-D poorten: 1
- Hoofdtelefoonuitgangen: 1
- Microfoon, line-in ingang: Ja
Opslag-controllers
- Ondersteunde types opslag-drives: HDD,SSD
- Soorten RAID: 0, 1, 5, 10

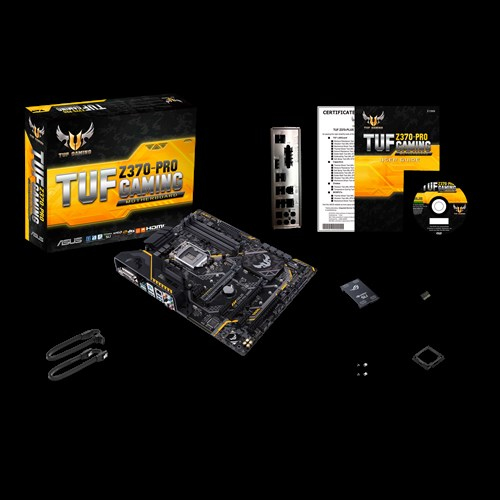

Inhoud van de verpakking
- Meegeleverde kabels: SATA
- Gebruikershandleiding: Ja
- Meegeleverde drivers: Ja
Uitbreidingsmodules
- PCI Express x1 (Gen 3.x) slots: 3
- PCI Express x16 (Gen 3.x) slots: 3
- Aantal M.2 (M) slots: 2
BIOS
- BIOS type: UEFI
- Grootte BIOS-geheugen: 16 Mbit
- ACPI version: 6.0
- Systeem Management BIOS (SMBIOS) versie: 3.0
Grafisch
- Ondersteuning voor parallel processing: 2-Way CrossFireX,2-Way SLI
- Grafische adapter-familie: Intel
- Discrete grafische ondersteuning: Ja
Processor speciale functies
- Intel® Extreme Memory Profile (XMP): Ja
- Intel® Optane™ Memory Ready: Ja
Kenmerken
- Component voor: PC
- Moederbord chipset familie: Intel
- Chipset moederbord: Intel® Z370
- Moederbord form factor: ATX
- Audio-uitgangskanalen: 7.1 kanalen
- Audiochip: Realtek ALC887
- Supported processor sockets: LGA 1151 (Socket H4)
- PC gezondheids monitor: CPU, Ventilator, Voeding, Temperatuur, Spanning
- Type koeling: Passief
- Ondersteunt Windows: Ja
€ 158,99
