Artikelnummer: 4638044

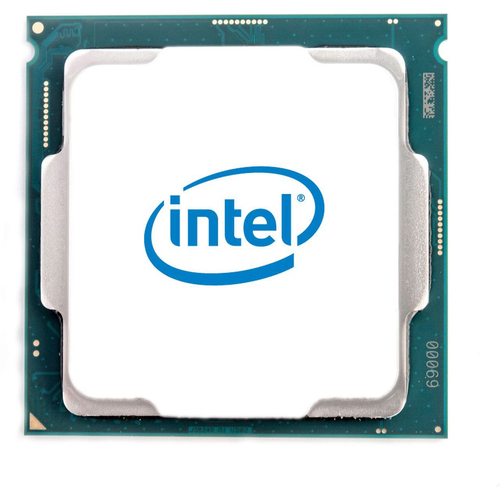

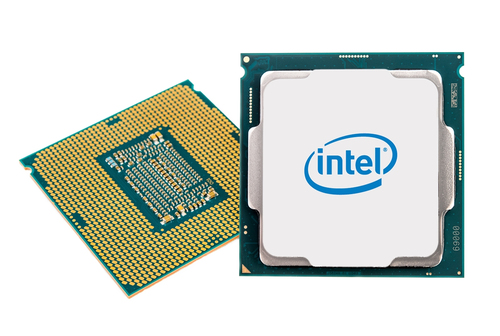

Intel Core i3 8300 - 3.7 GHz - 4 cores - 4 threads - 8 MB cache - LGA1151 Socket - doos

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Processor

• Processorfamilie: Intel® 8ste generatie Core™ i3
• Frequentie van processor: 3,7 GHz
• Aantal processorkernen: 4
• Processor socket: LGA 1151 (Socket H4)
• Component voor: PC
• Processor lithografie: 14 nm
• Box: Ja
• Processormodel: i3-8300
• Processor aantal threads: 4
• Systeembus: 8 GT/s
• Processor operating modes: 64-bit
• Processor cache: 8 MB
• Stepping: B0
• Bus type: DMI3
• Codenaam processor: Coffee Lake
• Processorcode: SR3XY
• ARK ID processor: 129942

Geheugen

• Geheugenkanalen ondersteund door processor: Dual
• Maximaal intern geheugen ondersteund door processor: 64 GB
• Geheugentypen ondersteund door processor: DDR4-SDRAM
• Klokgeheugen-snelheden ondersteund door processor: 2400 MHz
• Geheugenbandbreedte ondersteund door de processor ( max): 37,5 GB/s
• ECC ondersteund door processor: Ja

Gewicht en omvang

• Verpakkingsgrootte processor: 37.5 x 37.5 mm

Energie

• Thermal Design Power (TDP): 62 W

Eisen aan de omgeving

• Tjunction: 100 °C

Technische details

• Processorcache: 8192 KB
• Producttype: 4
• Status: Launched
• Productfamilie: Intel Core Processors

Overige specificaties

• Maximaal intern geheugen: 65536 MB

Grafisch

• Ingebouwde grafische adapter: Ja
• Aparte grafische adapter: Nee
• On-board graphics adapter model: Intel® UHD Graphics 630
• Maximaal geheugen ingebouwde grafische adapter: 64 GB
• On-board ondersteunde grafische adapter uitgangen: DisplayPort,Embedded DisplayPort (eDP),HDMI
• Basisfrequentie ingebouwde grafische adapter: 350 MHz
• Graphics on-board -adapter dynamische frequentie (max): 1150 MHz
• Aantal displays ondersteund (door on-board grafische adapter): 3
• 4K-ondersteuning: Ja
• On-board grafische adapter DirectX-versie: 12.0
• On-board grafische adapter OpenGL versie: 4.5
• Graphics aan boord maximale resolutie adapter (DisplayPort ): 4096 x 2304 Pixels
• Maximale resolutie (eDP - Integrated Flat Panel): 4096 x 2304 Pixels
• Maximale resolutie ingebouwde grafische adapter (HDMI): 4096 x 2304 Pixels
• Grafische adapter refresh rate on-board bij maximale resolutie (DisplayPort ): 60 Hz
• Refresh rate op maximale resolutie (eDP - Integrated Flat Panel): 60 Hz
• Verversingsfrequentie ingebouwde grafische adapter bij maximale resolutie (HDMI): 24 Hz
• On-board grafische adapter ID: 0x3E91

Processor speciale functies

• Intel® Hyper Threading Technology (Intel® HT Technology): Nee
• Intel® Identity Protection Technology (Intel® IPT): Ja
• Intel® Turbo Boost Technology: Nee
• Intel® vPro™ Technology: Nee
• Intel® Quick Sync Video Technology: Ja
• Intel® InTru™ 3D Technology: Ja
• Intel® Clear Video HD Technology (Intel® CVT HD): Ja
• Intel® AES New Instructions (Intel® AES-NI): Ja
• Enhanced Intel SpeedStep Technology: Ja
• Intel® Trusted Execution Technology: Nee
• Intel® Memory Protection Extensions (Intel® MPX): Ja
• Intel® Device Protection Technology (Intel® DPT) met Boot Guard: Ja
• Intel® Enhanced Halt State: Ja
• Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID): Ja
• Intel® VT-x with Extended Page Tables (EPT): Ja
• Intel® Secure Key: Ja
• Intel® TSX-NI: Nee
• Intel® Stable Image Platform Program (SIPP): Nee
• Intel® OS Guard: Ja
• Intel® Clear Video-technologie: Ja
• Intel® Software Guard Extensions (Intel® SGX): Ja
• Intel® 64: Ja
• Intel® Virtualization Technology (VT-x): Ja
• Intel® Virtualization Technology for Directed I/O (VT-d): Ja
• Intel® Optane™ Memory Ready: Ja

Kenmerken

• Execute Disable Bit: Ja
• Idle States: Ja
• Thermal Monitoring Technologies: Ja
• Maximaal aantal PCI Express-lijnen: 16
• PCI Express slots versie: 3.0
• PCI Express configuraties: 1x16,1x8+2x4,2x8
• Ondersteunde instructie sets: AVX 2.0,SSE4.1,SSE4.2
• Schaalbaarheid: 1S
• CPU configuratie (max): 1
• Ingebouwde opties beschikbaar: Nee
• Thermal solution specificatie: PCG 2015C
• Marktsegment: DT
