Artikelnummer: 3913553

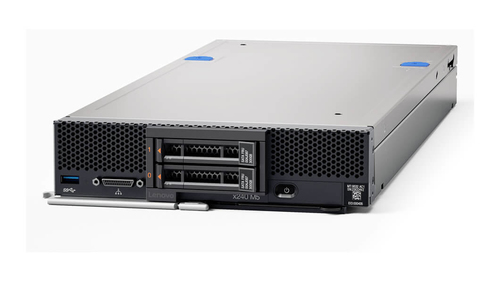

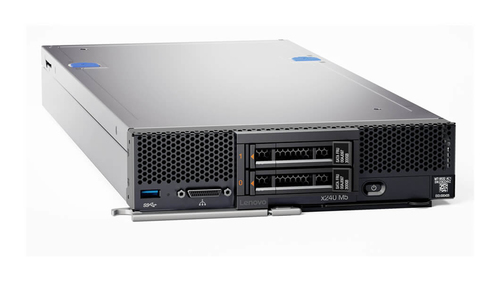

Lenovo Flex System x240 M5 9532 - Server - berekeningsknooppunt - 2-weg - 1 x Xeon E5-2690V4 / 2.6 GHz - RAM 16 GB - SAS - hot-swap (verwisselbaar zonder uitschakelen) 2.5" - geen HDD - G200eR2 - geen OS - monitor: geen
The Lenovo Flex System x240 M5 Compute Node is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server incorporates Intel Xeon E5-2600 v4 processors. The processors feature up to 22 cores each and use new Lenovo TruDDR4 Memory, which runs at speeds up to 2400 MHz.
This product guide provides essential presales information to understand the x240 M5 offering, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the x240 M5 compute node and consider its use in IT solutions.
- Improves productivity by offering superior system performance with up to 22-core processors, up to 55 MB of L3 cache, and up to 9.6 GT/s QPI interconnect links
- Supports up to two processors, 44 cores, and 88 threads, which maximizes the concurrent execution of multi-threaded applications
- Intelligent and adaptive system performance with energy-efficient Intel Turbo Boost Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP)
- Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core
- Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better use the hardware for virtualization workloads
- Intel Advanced Vector Extensions 2.0 (AVX 2.0) enable acceleration of enterprise-class workloads, such as databases and enterprise resource planning
- Up to 2400 MHz memory speeds with two DIMMs per channel (2DPC) that are running at 2400 MHz to help maximize system performance
- Up to 1.5 TB of memory capacity using 64 GB LRDIMMs
- Optional support for high-performance PCIe-attached NVMe Flash Storage solid-state drives (SSDs) can significantly improve I/O performance
- Supports the Storage Expansion Node, which provides another 12 hot-swap, 2.5-inch drive bays for local storage
- Up to 32 virtual I/O ports per compute node with available 10 Gb Virtual Fabric Adapters, which offers the choice of Ethernet, iSCSI, or Fibre Channel over Ethernet (FCoE) connectivity
- The x240 M5 offers PCI Express 3.0 I/O expansion capabilities that improve the theoretical maximum bandwidth by 60% (8 GT/s per link), compared with the previous generation of PCI Express 2.0
- With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor E5 family. This integration helps to dramatically reduce I/O latency and increase overall system performance
- Support for high-bandwidth I/O adapters; up to two in each x240 M5 Compute Node
- Support for 40 Gb Ethernet, 16 Gb Fibre Channel, and FDR InfiniBand
- Supports the PCIe Expansion Node for support for up to six more I/O adapters
- High-speed USB 3.0 port for connectivity to external devices
Processor
- Frequentie van processor: 2,6 GHz
- Processorfamilie: Intel® Xeon® E5 v4
- Processormodel: E5-2690V4
- Aantal processorkernen: 14
- Aantal geïnstalleerde processoren: 1
- Processor cache type: Smart Cache
- Processor cache: 35 MB
- Systeembus: 9,6 GT/s
- Processor socket: LGA 2011-v3
- Chipset moederbord: Intel® C612
- Maximale turbofrequentie van processor: 3,5 GHz
- Processor lithografie: 14 nm
- Processor aantal threads: 28
- Processor operating modes: 64-bit
- Stepping: M0
- Bus type: QPI
- aantal QPI links: 2
- Codenaam processor: Broadwell
- Tcase: 89 °C
- Maximaal intern geheugen ondersteund door processor: 1536 GB
- Geheugentypen ondersteund door processor: DDR4-SDRAM
- Klokgeheugen-snelheden ondersteund door processor: 1600,1866,2133,2400 MHz
- Geheugenbandbreedte ondersteund door de processor ( max): 76,8 GB/s
- Geheugenkanalen ondersteund door processor: Quad
- ECC ondersteund door processor: Ja
- Execute Disable Bit: Ja
- Idle States: Ja
- Thermal Monitoring Technologies: Ja
- Maximaal aantal PCI Express-lijnen: 40
- Verpakkingsgrootte processor: 52.5 x 51 mm
- Ondersteunde instructie sets: AVX 2.0
- Processorcode: SR2N2
- Schaalbaarheid: 2S
- Physical Address Extension (PAE): Ja
- Physical Address Extension (PAE): 46 Bit
- Ingebouwde opties beschikbaar: Nee
- Thermal Design Power (TDP): 135 W
- Processorserie: Intel Xeon E5-2600 v4
- Conflictvrije processor: Ja
Geheugen
- Intern geheugen: 16 GB
- Intern geheugentype: DDR4-SDRAM
- Maximum intern geheugen: 1500 GB
- Geheugenslots: 24
- ECC: Ja
- Kloksnelheid geheugen: 2133 MHz
- Geheugenlayout: 1 x 16 GB
Beeldscherm
- Ingebouwd display: Nee
Poorten & interfaces
- Aantal Ethernet LAN (RJ-45)-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 1
Gewicht en omvang
- Breedte: 215 mm
- Diepte: 493 mm
- Hoogte: 215 mm
- Gewicht: 7,1 kg
Eisen aan de omgeving
- Temperatuur, in bedrijf: 5 - 40 °C
- Relatieve luchtvochtigheid, in bedrijf: 8 - 85 procent
Netwerk
- Ethernet LAN: Ja
- Wi-Fi: Nee
Opslagmedia
- RAID support: Ja
- Maximale opslagcapaciteit: 7,68 TB
- Soorten RAID: 0, 1
- Ondersteunde RAID-controllers: M1210e
- Maximum aantal HDD's per behuizing: 2
- Ondersteunde HDD-groottes: 1.8,2.5"
- Hot-swap: Ja
- Geïntegreerde geheugenkaartlezer: Ja
- Compatibele geheugenkaarten: SD,SDHC
Certificaten
- Certificering: NEBS level 3, TUV GS, CISPR 22 Class A, BSMI CNS 13438 Class\nA, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, CB, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1,\nICES-004, VCCI Class A, KN22, KN24, ASHRAE, CNS 14336
Software
- Compatibele besturingssystemen: Microsoft Windows Server, SUSE, RedHat Enterprise Linux, VMware
Uitbreidingsmodules
- PCI Express x16 (Gen 3.x) slots: 2
- PCI Express slots versie: 3.0
Design
- Type behuizing: Rack (2U)
- Soort optische drive: Nee
- Kleur van het product: Zwart
- Rack-montage: Ja
Grafisch
- Ingebouwde grafische adapter: Ja
- On-board graphics adapter model: Matrox G200eR2
- Geheugen ingebouwde grafische adapter: 0,016 GB
Processor speciale functies
- CPU configuratie (max): 2
- Enhanced Intel SpeedStep Technology: Ja
- Intel® Identity Protection Technology (Intel® IPT): Nee
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Hyper Threading Technology (Intel® HT Technology): Ja
- Intel® Turbo Boost Technology: 2.0
- Intel® vPro™ Technology: Ja
- Intel® Flex Memory Access: Nee
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted Execution Technology: Ja
- Intel® Enhanced Halt State: Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Intel® Demand Based Switching: Ja
- Intel® Secure Key: Ja
- Intel® TSX-NI: Ja
- Intel® OS Guard: Ja
- Intel® 64: Ja
- Intel® Virtualization Technology (VT-x): Ja
- ARK ID processor: 91770
Prestatie
- BIOS type: UEFI
- Trusted Platform Module (TPM): Ja
- Trusted Platform Module (TPM) version: 2.0
€ 4.319,59
