Artikelnummer: 4050274

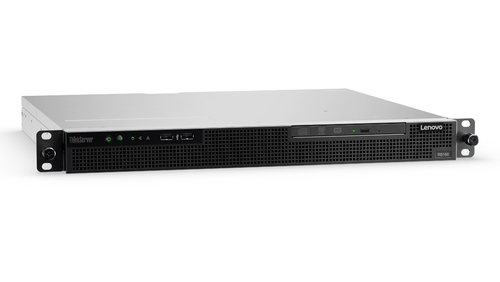

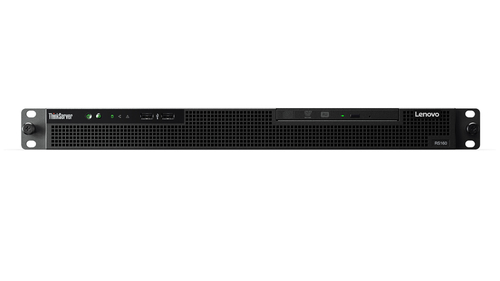

Lenovo ThinkServer RS160 70TG - Server - rack-uitvoering - 1U - 1 x Xeon E3-1220V5 / 3 GHz - RAM 8 GB - geen HDD - AST2400 - GigE - geen OS - monitor: geen - TopSeller
Increased Performance
The Lenovo ThinkServer RS160 is an excellent entry-server for growing businesses. Featuring powerful Intel® processors and enterprise-class storage and networking, it offers up to 12Gbps data transfer rate as well as 2x the memory and 33 percent more internal storage capacity than its predecessor. The RS160 is ideal for web hosting, mail serving, file-and-print serving, video streaming, as well as a wide range of general-purpose productivity applications.
Built-in Value and Flexibility
The RS160 features a full line of powerful Intel processors, from Celeron to Xeon®, and up to 64GB of DDR4 memory. It provides business flexibility with multiple storage types and form factors, including up to 16TB of internal storage and 32GB of M.2 drive support for additional scalability. Multiple server OSes are available and the rack is available with 2-post and 4-post rail rack-mounting options.
Customer Friendly
Lenovo servers continue to be rated the most reliable x86 servers on the market and have the highest customer satisfaction. The RS160 is no exception. Its shallow chassis depth promotes greater in-rack airflow and it has an 80 Plus Gold-certified power supply. Easy-to-use Lenovo XClarity system management tools* provide business-class reliability and management to reduce costs and downtime. These are the same tools used on Lenovo’s high-end, two-socket rack systems.
Why Lenovo
Lenovo is the leading provider of x86 systems for the data center. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security. Lenovo also offers a full range of networking, storage, software and solutions, and comprehensive services supporting business needs throughout the IT lifecycle.
Processor
- Frequentie van processor: 3 GHz
- Processorfamilie: Intel® Xeon® E3 v5
- Processormodel: E3-1220V5
- Aantal processorkernen: 4
- Aantal geïnstalleerde processoren: 1
- Processor cache type: Smart Cache
- Processor cache: 8 MB
- Systeembus: 8 GT/s
- Processorfabrikant: Intel
- Max. aantal SMP-processoren: 1
- Compatibele processors: Intel® Celeron®, Intel® Pentium®
- Processor socket: LGA 1151 (Socket H4)
- Chipset moederbord: Intel® C232
- Maximale turbofrequentie van processor: 3,5 GHz
- Processor lithografie: 14 nm
- Processor aantal threads: 4
- Processor operating modes: 64-bit
- Stepping: R0
- Bus type: QPI
- Codenaam processor: Skylake
- Maximaal intern geheugen ondersteund door processor: 64 GB
- Geheugentypen ondersteund door processor: DDR3L-SDRAM,DDR4-SDRAM
- Klokgeheugen-snelheden ondersteund door processor: 1333,1600,1866,2133 MHz
- Geheugenbandbreedte ondersteund door de processor ( max): 34,1 GB/s
- Geheugenkanalen ondersteund door processor: Dual
- ECC ondersteund door processor: Ja
- Voltage geheugen ondersteund door processor: 1,35 V
- Execute Disable Bit: Ja
- Idle States: Ja
- Thermal Monitoring Technologies: Ja
- Maximaal aantal PCI Express-lijnen: 16
- PCI Express configuraties: 1x16,1x8+2x4,2x8
- Verpakkingsgrootte processor: 37.5 x 37.5 mm
- Ondersteunde instructie sets: AVX 2.0,SSE4.1,SSE4.2
- Processorcode: SR2LG
- Schaalbaarheid: 1S
- Ingebouwde opties beschikbaar: Nee
- Graphics & IMC lithografie: 14 nm
- Thermal Design Power (TDP): 80 W
- Processorserie: Intel Xeon E3-1200 v5
- Conflictvrije processor: Ja
Geheugen
- Intern geheugen: 8 GB
- Intern geheugentype: DDR4-SDRAM
- Maximum intern geheugen: 64 GB
- Geheugenslots: 4 x DIMM
- ECC: Ja
- Kloksnelheid geheugen: 2133 MHz
- Geheugenlayout: 1 x 8 GB
Poorten & interfaces
- Aantal USB 2.0-poorten: 2
- VGA (D-Sub)poort(en): 1
- Aantal Ethernet LAN (RJ-45)-poorten: 3
- Seriële poort(en): 1
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 4
Gewicht en omvang
- Breedte: 438,5 mm
- Diepte: 393,7 mm
- Hoogte: 43,2 mm
- Gewicht: 7,6 kg
Energie
- Netvoeding: 300 W
- Aantal hoofdvoedingen: 1
- Voeding, frequentie ingang: 50 - 60 Hz
Eisen aan de omgeving
- Temperatuur, in bedrijf: 10 - 35 °C
- Temperatuur bij opslag: -40 - 60 °C
- Relatieve luchtvochtigheid, in bedrijf: 8 - 80 procent
- Luchtvochtigheid bij opslag: 10 - 90 procent
- Hoogte, in bedrijf: 0 - 3048 m
Netwerk
- Ethernet LAN: Ja
- Bekabelingstechnologie: 10/100/1000Base-T(X)
- Ethernet interface type: Gigabit Ethernet
Opslagmedia
- RAID support: Ja
- Soorten RAID: 0, 1, 5, 10
- Maximum aantal HDD's per behuizing: 2
- Ondersteunde HDD-groottes: 3.5"
- Ondersteunde opslagstationinterfaces: SAS, SATA III
Software
- Compatibele besturingssystemen: Microsoft Windows Server 2012 R2/2012\nRed Hat Enterprise Linux 6.7/6.8/7.2\nSUSE Linux Enterprise Server 11/12\nVMware vSphere (ESXi) 6.0Ub/U2
Uitbreidingsmodules
- PCI Express slots versie: 3.0
Design
- Type behuizing: Rack (1U)
- Soort optische drive: Nee
Grafisch
- Ingebouwde grafische adapter: Ja
- On-board graphics adapter model: Aspeed AST2400
Processor speciale functies
- CPU configuratie (max): 1
- Enhanced Intel SpeedStep Technology: Ja
- Intel® Wireless Display (Intel® WiDi): Nee
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Hyper Threading Technology (Intel® HT Technology): Nee
- Intel® Turbo Boost Technology: 2.0
- Intel® vPro™ Technology: Ja
- Intel® Quick Sync Video Technology: Nee
- Intel® InTru™ 3D Technology: Nee
- Intel® Clear Video HD Technology (Intel® CVT HD): Nee
- Intel® Insider™: Nee
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted Execution Technology: Ja
- Intel® Enhanced Halt State: Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Intel® Secure Key: Ja
- Intel® TSX-NI: Ja
- Intel® OS Guard: Ja
- Intel® Clear Video-technologie: Nee
- Intel® Software Guard Extensions (Intel® SGX): Ja
- Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID): Nee
- Intel® 64: Ja
- Intel® Virtualization Technology (VT-x): Ja
- ARK ID processor: 88172
Prestatie
- Beveiligingseigenschappen: Power-on password, administrator password
- BIOS type: UEFI
- Geïntegreerde BMC met IPMI: Ja
€ 824,74
