Artikelnummer: 4660490

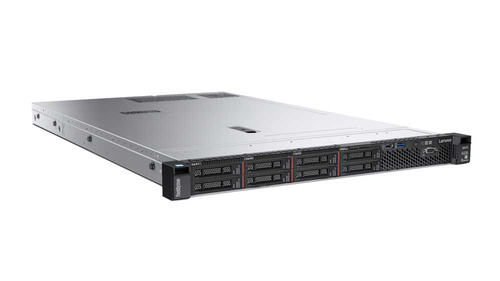

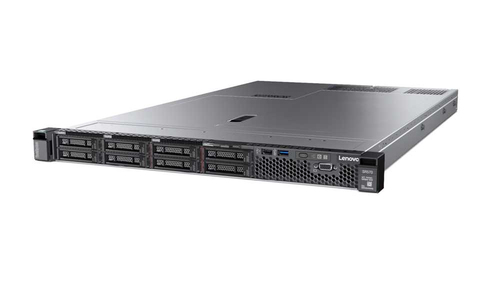

Lenovo ThinkSystem SR570 7Y03 - Server - rack-uitvoering - 1U - 2-weg - 1 x Xeon Silver 4114 / 2.2 GHz - RAM 32 GB - SAS - hot-swap (verwisselbaar zonder uitschakelen) 2.5" - geen HDD - Matrox G200 - GigE - geen OS - monitor: geen - TopSeller
Powerful and affordable
The 1U Lenovo ThinkSystem SR570 rack server is an excellent fit for Big Data, web serving, and infrastructure scale-out. It’s designed for rack environments that require peak memory and two-socket performance, flexible storage, outstanding value, and intuitive management.
It can accelerate compute performance across a wide range of applications with up to two Intel® Xeon® Scalable Family processors and offers 43% more cores than the previous generation. The SR570’s faster memory and greater memory capacity power larger workloads, offering as much as 1TB of memory capacity, 33% more than the ThinkSystem SR530.
Versatile
Adapt to changing workload requirements and boost I/O throughput with multiple NIC form factors, including LOM, ML2, and 3x PCIe 3.0 slots, as well as replaceable I/O riser cards for varied adapter slot configurations.
The SR570 supports a choice of up to 10 hot-swap 2.5" or 4 hot-swap or simple-swap 3.5" drive bays. These drive bays support SAS and SATA HDDs and SSDs with up to 12Gb SAS throughput.
Four of the 2.5" bays can be AnyBay, capable of supporting not only SAS/SATA drives, but also direct-connect NVMe drives for the ultimate in storage performance. The SR570 also supports one or two M.2 drives for faster, more secure OS boot.
Reliable and secure
Lenovo servers have been the most reliable in the industry for several years. They were ranked #1 yet again in the latest ITIC survey of x86 server reliability.* The SR570 is no exception, including many features that contribute to the reliability and security of the server and your all-important data. As a result, Lenovo's servers are also #1 in customer satisfaction among x86 servers.**
These features result in a powerful, highly adaptable, cost-efficient server with a low TCO.
* 2016-2017 Global Hardware, Server OS Reliability Report, ITIC; October 2016
** 2H16 Corporate IT Buying Behavior and Customer Satisfaction Study, TBR; December 2016.
Why Lenovo
Lenovo is a leading provider of systems for the data center. The portfolio includes rack, tower, blade, dense, and hyperconverged systems, and provides enterprise-class performance, reliability, and security. Lenovo also offers a full range of networking, storage, software, and solutions, as well as comprehensive services that support business needs throughout the IT lifecycle.
- A high degree of commonality of components among all servers in the portfolio reduces costs for parts-on-hand inventory and simplifies servicing
- Support for ASHRAE A4 (with processor limitations for a fully configured server) reduces operating expenses for cooling
- AnyBay storage bays enable the use of 2.5" SAS/SATA and NVMe drives in the same bays
Processor
- Frequentie van processor: 2,2 GHz
- Processorfamilie: Intel® Xeon®
- Processormodel: 4114
- Aantal processorkernen: 10
- Aantal geïnstalleerde processoren: 1
- Processor cache type: L3
- Processor cache: 13,75 MB
- Processor socket: LGA 3647
- Maximale turbofrequentie van processor: 3 GHz
- Processor lithografie: 14 nm
- Processor aantal threads: 20
- Processor operating modes: 64-bit
- Stepping: U0
- Bus type: UPI
- Codenaam processor: Skylake
- Tcase: 78 °C
- Maximaal intern geheugen ondersteund door processor: 768 GB
- Geheugentypen ondersteund door processor: DDR4-SDRAM
- Klokgeheugen-snelheden ondersteund door processor: 2400 MHz
- Geheugenkanalen ondersteund door processor: Hexa
- ECC ondersteund door processor: Ja
- Execute Disable Bit: Ja
- Maximaal aantal PCI Express-lijnen: 48
- Verpakkingsgrootte processor: 76 x 56.5 mm
- Ondersteunde instructie sets: AVX,AVX 2.0,AVX-512,SSE4.2
- Processorcode: SR3GK
- Schaalbaarheid: 2S
- Ingebouwde opties beschikbaar: Nee
- Thermal Design Power (TDP): 85 W
- Conflictvrije processor: Ja
Geheugen
- Intern geheugen: 32 GB
- Intern geheugentype: DDR4-SDRAM
- Maximum intern geheugen: 1000 GB
- Geheugenslots: 16
- ECC: Ja
- Kloksnelheid geheugen: 2666 MHz
- Geheugenlayout: 1 x 32 GB
Beeldscherm
- Ingebouwd display: Nee
Poorten & interfaces
- VGA (D-Sub)poort(en): 1
- Aantal Ethernet LAN (RJ-45)-poorten: 2
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 3
Gewicht en omvang
- Breedte: 482 mm
- Diepte: 778,3 mm
- Hoogte: 43 mm
Energie
- Redundante voeding: Ja
- Netvoeding: 750 W
- Aantal ondersteunde redundante voedingen: 2
- Aantal geïnstalleerde redundante voedingen: 2
Netwerk
- Ethernet LAN: Ja
- Wi-Fi: Nee
- Bluetooth: Nee
- Ethernet interface type: Gigabit Ethernet
Opslagmedia
- RAID support: Ja
- Maximale opslagcapaciteit: 76,8 TB
- Soorten RAID: 0, 1, 5, 6, 10, 50, 60
- Ondersteunde RAID-controllers: 930-8i 2GB Flash
- Ondersteunde HDD-groottes: 2.5"
- Hot-swap: Ja
- Ondersteunde opslagstationinterfaces: SAS, SATA III
- Geïntegreerde geheugenkaartlezer: Nee
Certificaten
- Energy Star-certificaat: Ja
Software
- Compatibele besturingssystemen: Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 7.3/6.9. SUSE \nLinux Enterprise Server 12 SP2/11 SP4. VMware ESXi 6.5/6.0 U3
Uitbreidingsmodules
- PCI Express x8 slots: 1
- PCI Express x16 slots: 1
- PCI Express slots versie: 3.0
Design
- Type behuizing: Rack (1U)
- Soort optische drive: Nee
- Rack-montage: Ja
Grafisch
- Ingebouwde grafische adapter: Ja
- On-board graphics adapter model: Matrox G200
Processor speciale functies
- Enhanced Intel SpeedStep Technology: Ja
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Hyper Threading Technology (Intel® HT Technology): Ja
- Intel® Turbo Boost Technology: 2.0
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted Execution Technology: Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Intel® TSX-NI: Ja
- Intel® 64: Ja
- Intel® Virtualization Technology (VT-x): Ja
- ARK ID processor: 123550
Prestatie
- Prestatiebeheer: XClarity Advanced
- Trusted Platform Module (TPM): Ja
€ 3.526,80
