Artikelnummer: 3871308
TopSeller x3650 M5 Xeon6C E5-2620V4 85W 2.4 GHz
Highlights
- Tackle enterprise workloads with power, efficiency and reliability
- Choose from flexible storage configurations for workload-optimized performance
- Leverage the massive capacity (up to 120TB) to run Big Data and storage-hungry workloads
- Reduce unplanned downtime and minimize costs
- Simplify server management with Lenovo XClarity
- Safeguard enterprise data with built-in Lenovo Trusted Platform Assurance, plus optional self-encrypting drives and IBM Security Key Lifecycle Manager
- Gain superior performance with Intel Xeon E5-2600 v4 processors (up to 44 cores per server), end-to-end 12Gbps RAID support—devices and infrastructure—up to four RAID adapters, up to eight front-mounted NVMe PCIe SSDs and up to four GPUs
- Reduce data center costs with smart energy-efficient features, including extended operating temperature, 80 PLUS® Titanium power supplies (up to 96 percent efficiency), active/standby power supply modes, dual fan zone design, and TruDDR4 Memory (up to 45 percent lower energy use over DDR3), optional Lenovo XClarity Energy Manager
- Run more virtual machines and workloads with up to 22 percent more cores than previous generation
Power Forward

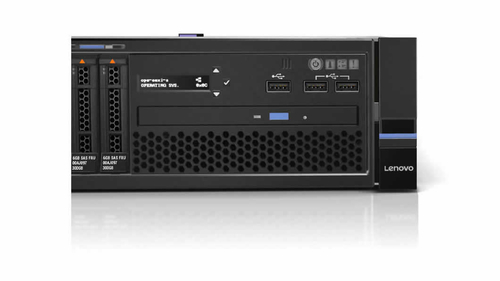

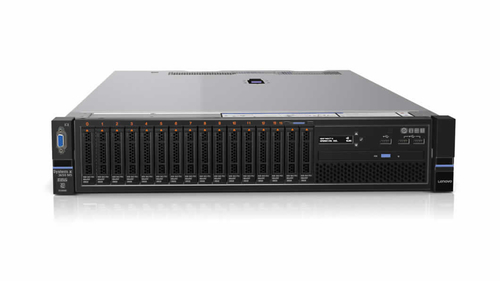

With the powerful, versatile 2U two-socket System x3650 M5 rack server, you can run even more enterprise workloads, 24/7, and gain faster business insights. Integrated with up to two Intel® Xeon® processors E5-2600 v4 series (up to 44 cores per system), fast TruDDR4 2400MHz Memory, and massive storage capacity, the x3650 M5 fast forwards your business. You can select from an impressive array of storage configurations (up to 28 drive bays) that optimize diverse workloads from Cloud to Big Data.
Processor
- Frequentie van processor: 2,1 GHz
- Processorfamilie: Intel® Xeon® E5 v4
- Processormodel: E5-2620V4
- Aantal processorkernen: 8
- Aantal geïnstalleerde processoren: 1
- Processor cache type: Smart Cache
- Processor cache: 20 MB
- Systeembus: 8 GT/s
- Processor socket: LGA 2011-v3
- Maximale turbofrequentie van processor: 3 GHz
- Processor lithografie: 14 nm
- Processor aantal threads: 16
- Processor operating modes: 64-bit
- Stepping: R0
- Bus type: QPI
- aantal QPI links: 2
- Codenaam processor: Broadwell
- Tcase: 74 °C
- Maximaal intern geheugen ondersteund door processor: 1536 GB
- Geheugentypen ondersteund door processor: DDR4-SDRAM
- Klokgeheugen-snelheden ondersteund door processor: 1600,1866,2133 MHz
- Geheugenbandbreedte ondersteund door de processor ( max): 68,3 GB/s
- Geheugenkanalen ondersteund door processor: Quad
- ECC ondersteund door processor: Ja
- Execute Disable Bit: Ja
- Idle States: Ja
- Thermal Monitoring Technologies: Ja
- Maximaal aantal PCI Express-lijnen: 40
- Verpakkingsgrootte processor: 52.5 x 51 mm
- Ondersteunde instructie sets: AVX 2.0
- Processorcode: SR2R6
- Schaalbaarheid: 2S
- Physical Address Extension (PAE): Ja
- Physical Address Extension (PAE): 46 Bit
- Ingebouwde opties beschikbaar: Ja
- Thermal Design Power (TDP): 85 W
- Processorserie: Intel Xeon E5-2600 v4
- Conflictvrije processor: Ja
Geheugen
- Intern geheugen: 16 GB
- Intern geheugentype: DDR4-SDRAM
- Maximum intern geheugen: 1500 GB
- ECC: Ja
- Kloksnelheid geheugen: 2400 MHz
- Geheugenlayout: 1 x 16 GB
Poorten & interfaces
- Aantal USB 2.0-poorten: 4
- Aantal Ethernet LAN (RJ-45)-poorten: 4
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 2
Energie
- Redundante voeding: Ja
- Netvoeding: 750 W
- Aantal ondersteunde redundante voedingen: 2
Netwerk
- Ethernet LAN: Ja
- Bekabelingstechnologie: 10/100/1000Base-T(X)
Opslagmedia
- HDD omvang: 2.5"
- HDD interface: SATA III, Serial Attached SCSI (SAS)
- RAID support: Ja
- Soorten RAID: 0, 1, 10
- Ondersteunde RAID-controllers: M5210
- SSD interfaces: SATA III, Serial Attached SCSI
- Hot-swap: Ja
Software
- Inclusief besturingssysteem: Nee
- Compatibele besturingssystemen: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Uitbreidingsmodules
- PCI Express slots versie: 3.0
Design
- Type behuizing: Rack (2U)
- Soort optische drive: Nee
- Rack-montage: Ja
Processor speciale functies
- CPU configuratie (max): 2
- Enhanced Intel SpeedStep Technology: Ja
- Intel® Identity Protection Technology (Intel® IPT): Nee
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Hyper Threading Technology (Intel® HT Technology): Ja
- Intel® Turbo Boost Technology: 2.0
- Intel® vPro™ Technology: Ja
- Intel® Flex Memory Access: Nee
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted Execution Technology: Ja
- Intel® Enhanced Halt State: Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Intel® Demand Based Switching: Ja
- Intel® Secure Key: Ja
- Intel® TSX-NI: Ja
- Intel® OS Guard: Ja
- Intel® 64: Ja
- Intel® Virtualization Technology (VT-x): Ja
- ARK ID processor: 92986
Prestatie
- Trusted Platform Module (TPM): Ja
€ 2.453,61
