Artikelnummer: 4451922

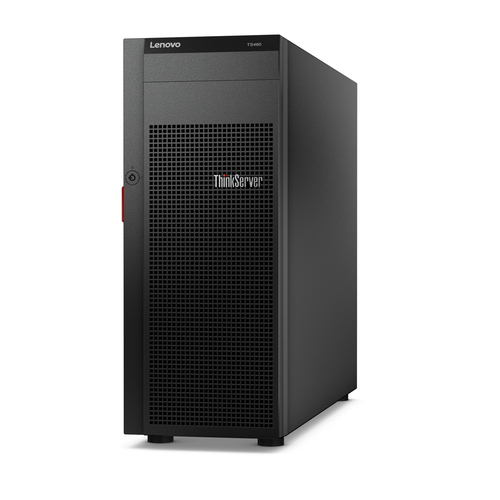

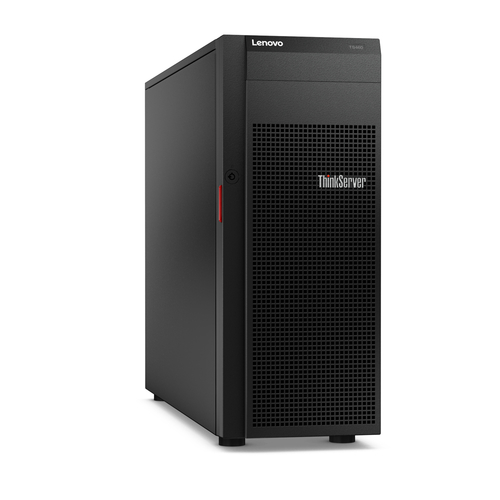

Lenovo ThinkServer TS460 70TT - Server - towermodel - 4U - 1-wegs - 1 x Xeon E3-1220V6 / 3 GHz - RAM 16 GB - SAS - hot-swap (verwisselbaar zonder uitschakelen) 2.5" - geen HDD - DVD-brander - AST2400 - GigE - geen OS - monitor: geen
- A choice of Intel® processor types, including Xeon® E3-1200 v5 family, Core® i3, and Pentium®
- Up to 64GB 2133MHz DDR4 memory
- Up to 8x 3.5-inch, or 16x 2.5-inch, or 4x 3.5-inch + 8x 2.5-inch bays
- Supports internal M.2 SSD
- Software RAID standard; optional hardware RAID
- 2x built-in 1GbE network interface ports, plus 1x dedicated management port
- Optional 2- or 4-port 1GbE NICs, and 1- or 2-port 10GbE NICs
- Choice of fixed or hot-swap/redundant drives and PSUs
- Support for several server and client operating systems
- Supports Lenovo XClarity for single-application systems management
Flexible and Scalable
The Lenovo ThinkServer TS460 offers flexibility in configuration: a choice of processors, including enterprise-class Intel® Xeon® E3-1200 Processor v5 series, as well as Core® i3 and Pentium® processors. Up to 64GB of ECC 2133MHz DDR4 UDIMM memory capacity enables you to run larger workloads, complete them faster, and virtualize for more efficient server usage.
Storage options include combinations of 5.25-inch optical/tape drives, 3.5-inch HDDs, and 2.5-inch HDDs/SSDs, plus support for an M.2 SSD. The 64TB of hot-swap SAS/SATA storage capacity is the industry’s largest for an entry tower server. The TS460 is ideal for storage-intense workloads and supports all major server operating systems for complete flexibility.
Enterprise Quality and Manageability
Enterprise-quality features include an IPMI 2.0-compliant ThinkServer Management Module (TMM), WebUI support, Lenovo XClarity software for easy centralized management, and a dedicated Ethernet port for systems management.
Availability and security options include hot-swap drives; 6Gb and 12Gb hardware RAID; hot-swap/redundant power; ECC memory; multiple 1Gb/10Gb Ethernet adapters with failover support; internal LTO tape, RDX cartridges, and rewritable DVDs for backup; and an optional TPM module.
Remote Office/Branch Office Use
The TS460 is optimized for remote office/branch office (ROBO) use. Its office-quiet acoustics and compact size (suitable for deskside or under-desk deployment) are perfect for an office environment, and the combination of energy-efficient processors, 1.2V DDR4 memory, and 80 PLUS Gold (up to 92% efficient) power supplies saves you money and helps the environment.
Processor
- Frequentie van processor: 3 GHz
- Processorfamilie: Intel® Xeon® E3 v6
- Processormodel: E3-1220 v6
- Aantal processorkernen: 4
- Aantal geïnstalleerde processoren: 4
- Processor cache type: Smart Cache
- Processor cache: 8 MB
- Systeembus: 8 GT/s
- Processor socket: LGA 1151 (Socket H4)
- Maximale turbofrequentie van processor: 3,5 GHz
- Processor lithografie: 14 nm
- Processor aantal threads: 4
- Processor operating modes: 64-bit
- Bus type: DMI3
- Codenaam processor: Kaby Lake
- Maximaal intern geheugen ondersteund door processor: 64 GB
- Geheugentypen ondersteund door processor: DDR3L,DDR4-SDRAM
- Klokgeheugen-snelheden ondersteund door processor: 1866,2133 MHz
- Geheugenbandbreedte ondersteund door de processor ( max): 37,5 GB/s
- Geheugenkanalen ondersteund door processor: Dual
- ECC ondersteund door processor: Ja
- Execute Disable Bit: Ja
- Idle States: Ja
- Thermal Monitoring Technologies: Ja
- Maximaal aantal PCI Express-lijnen: 16
- PCI Express configuraties: 1x16,1x8+2x4,2x8
- Verpakkingsgrootte processor: 37.5 x 37.5 mm
- Ondersteunde instructie sets: AVX 2.0,SSE4.1,SSE4.2
- Schaalbaarheid: 1S
- Ingebouwde opties beschikbaar: Nee
- Thermal Design Power (TDP): 72 W
- Conflictvrije processor: Ja
Geheugen
- Intern geheugen: 16 GB
- Intern geheugentype: DDR4-SDRAM
- Maximum intern geheugen: 64 GB
- Geheugenslots: 4
- ECC: Ja
- Kloksnelheid geheugen: 2400 MHz
Poorten & interfaces
- VGA (D-Sub)poort(en): 1
- Aantal Ethernet LAN (RJ-45)-poorten: 2
- Seriële poort(en): 1
- Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 6
Gewicht en omvang
- Breedte: 173 mm
- Diepte: 583 mm
- Hoogte: 443,5 mm
- Gewicht: 15 kg
Energie
- Redundante voeding: Ja
- Netvoeding: 450 W
- Aantal ondersteunde redundante voedingen: 2
- Aantal geïnstalleerde redundante voedingen: 2
Netwerk
- Ethernet LAN: Ja
- Bekabelingstechnologie: 10/100/1000Base-T(X)
- Ethernet interface type: Gigabit Ethernet
Opslagmedia
- HDD omvang: 2.5"
- HDD interface: SATA III
- RAID support: Ja
- Maximale opslagcapaciteit: 64 TB
Certificaten
- Energy Star-certificaat: Ja
- EPEAT compliance: Goud
Software
- Inclusief besturingssysteem: Nee
Uitbreidingsmodules
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x4 (Gen 3.x) slots: 1
- PCI Express x8 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express slots versie: 3.0
Design
- Type behuizing: Tower (4U)
- Soort optische drive: DVD±RW
Processor speciale functies
- CPU configuratie (max): 1
- Enhanced Intel SpeedStep Technology: Ja
- Intel® Virtualization Technology for Directed I/O (VT-d): Ja
- Intel® Hyper Threading Technology (Intel® HT Technology): Nee
- Intel® Turbo Boost Technology: 2.0
- Intel® Quick Sync Video Technology: Nee
- Intel® InTru™ 3D Technology: Nee
- Intel® Clear Video HD Technology (Intel® CVT HD): Nee
- Intel® AES New Instructions (Intel® AES-NI): Ja
- Intel® Trusted Execution Technology: Ja
- Intel® Enhanced Halt State: Ja
- Intel® VT-x with Extended Page Tables (EPT): Ja
- Intel® Secure Key: Ja
- Intel® TSX-NI: Ja
- Intel® OS Guard: Ja
- Intel® Clear Video-technologie: Nee
- Intel® Software Guard Extensions (Intel® SGX): Ja
- Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID): Nee
- Intel® 64: Ja
- Intel® Virtualization Technology (VT-x): Ja
- ARK ID processor: 97470
Prestatie
- Trusted Platform Module (TPM): Ja
- Trusted Platform Module (TPM) version: 2.0
€ 1.445,36
